| Description |

| Components |

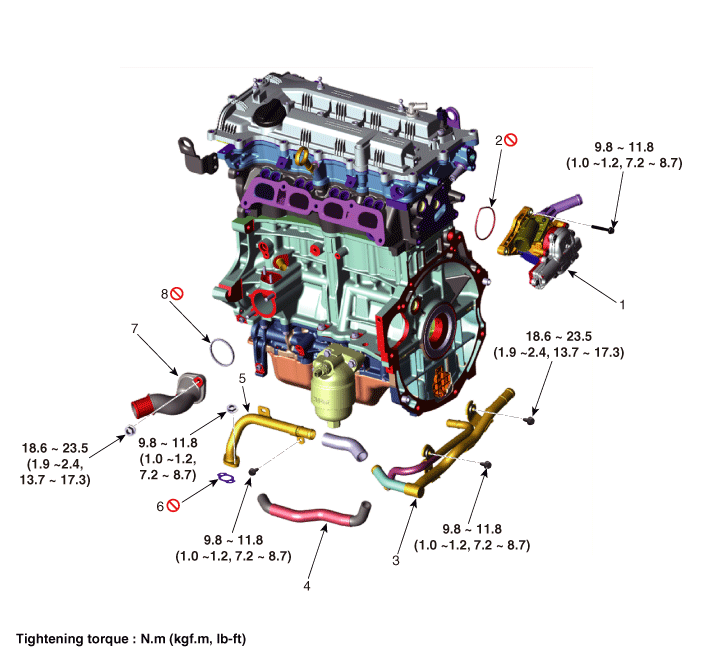

| 1. Integrated thermal management module (ITM) 2. Integrated thermal management module (ITM) O-ring 3. Heater pipe B 4. Heater water hose | 5. Heater pipe A 6. Heater pipe A gasket 7. Water inlet fitting 8. Water inlet fitting gasket |

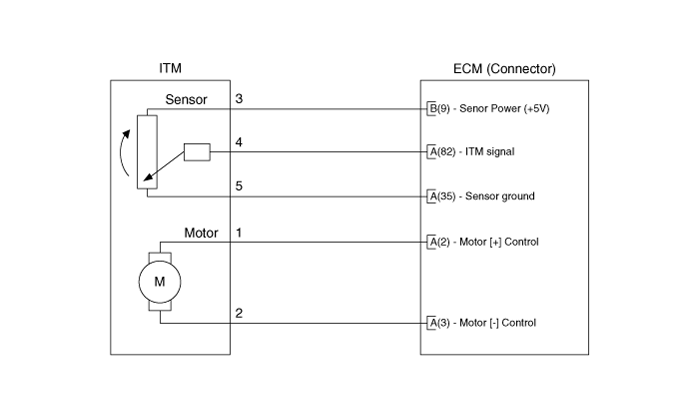

| Circuit Diagram |


| Removal and Installation |
| 1. | Remove the integrated thermal management module (ITM). (Refer to Engine Mechanical System - "Integrated Thermal Management Module (ITM)")
|
| 2. | Install in the reverse order of removal. |
| Inspection |
| 1. | Turn the ignition switch OFF. |
| 2. | Connect the diagnostic tool to data link connector (DLC). |
| 3. | Turn the ignition switch ON. |
| 4. | Select the "Veichle, Model Year, Engine Specification, System". |
| 5. | Connect a diagnostic tool and then operate the integrated thermal management motor (ITM). |
| 6. | Confirm the Integrated thermal management motor (ITM) proper operation. |
| 7. | When the DTC occur, refer to the DTC guide. |
