Description and operation

Description
The ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.
The sensor output will be used for discharge temperature control, temperature regulation door control, blower motor level control, mix mode control and in-car humidity control.

Repair procedures

Inspection
1.

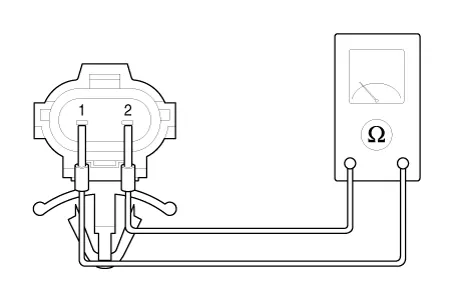

Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.
Sensor resistance
Ambient temperature [°C (°F)]
Resistance between terminal 1 and 2 (kΩ)
-30 (-22)
480.41
-20 (-4)
271.21
-10 (14)
158.18
0 (32)
95.096
10 (50)
58.799
20 (68)
37.315
30 (86)
24.26
40 (104)
16.13
50 (122)
10.95

1. Ambient Sensor (+)
2. Sensor ground

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper.
(Refer to Body - "Front Bumper Assembly")
3.

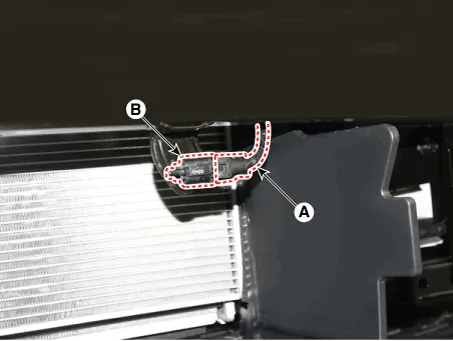

Disconnect the connector (A) and then remove the ambient temperature sensor (B).

4.
To install, reverse the removal procedure.
