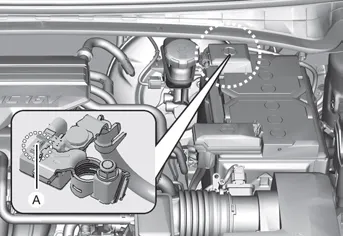

[A] : Battery sensor
The battery sensor is deactivated, when the battery is disconnected from the negative pole for maintenance purpose.
In this case, the ISG system is limitedly operated due to the battery sensor deactivation. Thus, the driver needs to take the following procedures to reactivate the battery sensor after disconnecting the battery.
Prerequisites to reactivate the battery sensor
Switch "ON" and "OFF" the ignition one time. Park the vehicle for a minimum of 4 hours with the hood and all doors closed.
Pay extreme caution not to connect any accessories (i.e. navigation and black box) to the vehicle with the engine in the OFF status. If not, the battery sensor may not be reactivated.
Information
The ISG system may not operate in the following situations.
-- There is a malfunction with the ISG
system.
-- The battery is weak.
-- The brake vacuum pressure is low.
If this occurs, have the ISG system
checked by an authorized HYUNDAI
dealer.
NOTICE
The ISG system may not operate: When there is a malfunction with the ISG sensors or the ISG system. The followings occur, when there is a malfunction with the ISG system: The auto stop indicator ( ) will illuminate in yellow on the instrument cluster.
