Hyundai Elantra (CN7): Lubrication System / Components and components location
Hyundai Elantra (CN7) 2021-2026 Service Manual / Engine Mechanical System / Lubrication System / Components and components location

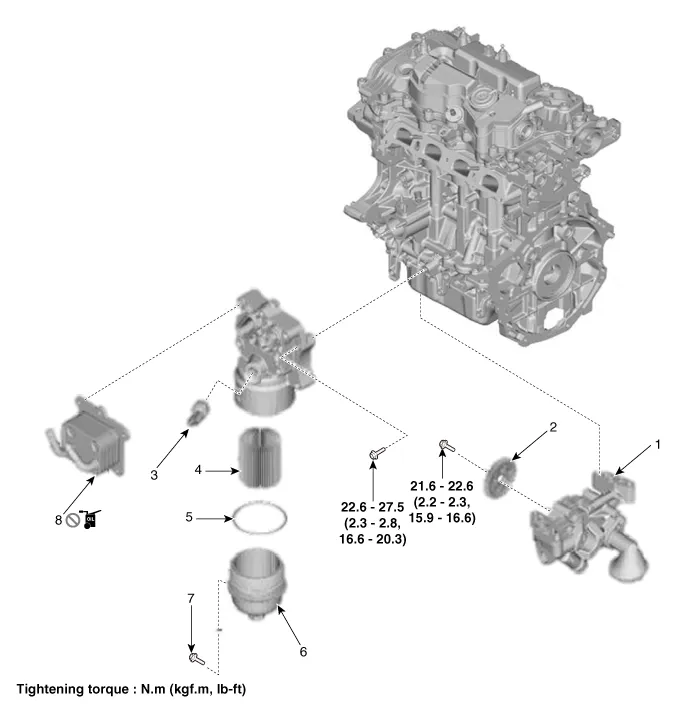

| Components |
| 1. Variable oil pump 2. Variable oil pump sproket 3. Oil Pressure & temperature sensor 4. Oil filter | 5. Filter cap O-ring 6. Filter cap 7. Safety pin 8. Oil cooler |
Engine oil flow diagram
