Hyundai Elantra (CN7): Smart Cruise Control (SCC) / Function settings

Setting

[A] : Type A, [B] : Type B

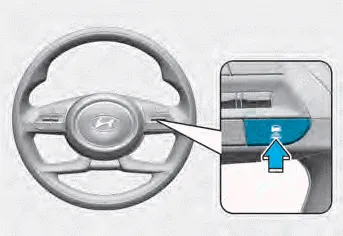

To turn on the function

• Press the Driving Assist button to turn on the system. The speed will be set to the current speed on the cluster.
• If there is no vehicle in front of you, the set speed will be maintained, but if there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead. If the vehicle ahead accelerates, your vehicle will travel at a steady cruising speed after accelerating to the set speed.

Information

• If your vehicle speed is between 0~ 20 mph (0~ 30 km/h) when you press the Driving Assist button, the Smart Cruise Control speed will be set to 20 mph (30 km/h).
• The Driving Assist button symbol ( ) may vary depending on your vehicle option.

[A] : Type A, [B] : Type B

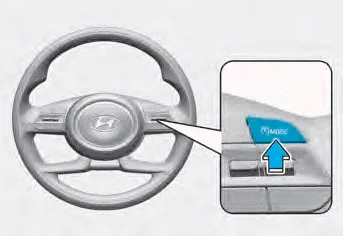

To set vehicle distance

Each time the button is pressed, the vehicle distance changes as follows:

Information

• If you drive at 56 mph (90 km/h), the distance is maintained as follows:
  Distance 4 - approximately 172 ft. (53 m)
  Distance 3 - approximately 130 ft. (40 m)
  Distance 2 - approximately 106 ft. (30 m)
  Distance 1 - approximately 82 ft. (25 m)
• The distance is set to the last set distance when the engine is restarted, or when the system was temporarily canceled.

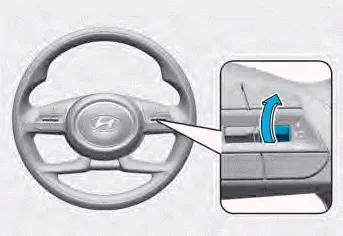

To increase speed

• Push the + switch up and release it immediately. The cruising speed will increase by 1 mph (1 km/h) each time the switch is operated in this manner.
• Push the + switch up and hold it while monitoring the set speed on the cluster. The cruising speed will increase by 5 mph or 10 km/h each time the switch is operated in this manner. Release the switch when the desired speed is shown, and the vehicle will accelerate to that speed. You can set the speed to 122 mph (180 km/h).

WARNING

Check the driving condition before using the + switch. Driving speed may sharply increase when you push up and hold the + switch.

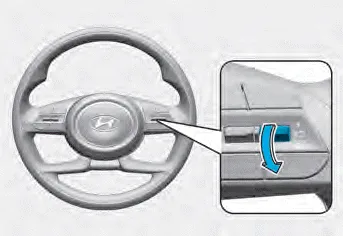

To decrease speed

• Push the - switch down and release it immediately. The cruising speed will decrease by 1 mph (1 km/h) each time the switch is operated in this manner.
• Push the - switch down and hold it while monitoring the set speed on the cluster. The cruising speed will decrease by 5 mph or 10 km/h each time the switch is operated in this manner.
  Release the switch at the speed you want to maintain. You can set the speed to 20 mph (30 km/h).

[A] : Type A, [B] : Type B

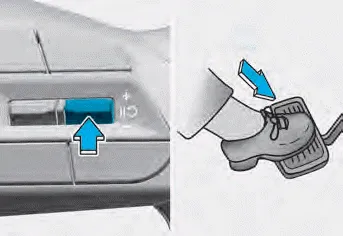

To temporarily cancel the function

Press the switch or depress the brake pedal to temporarily cancel Smart Cruise Control.

[A] : Type A, [B] : Type B

To resume the function

To resume Smart Cruise Control after the system was canceled, push the +, - or switch.

If you push the + switch up or - switch down, vehicle speed will be set to the current speed on the cluster.

If you push the switch, vehicle speed will resume to the preset speed.

WARNING

Check the driving condition before using the switch. Driving speed may sharply increase or decrease when you press the switch.

[A] : Type A, [B] : Type B

To turn off the function

Press the Driving Assist button to turn Smart Cruise Control system off.

Information

If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Smart Cruise Control. However, Manual Speed Limit Assist will turn on.

Smart Cruise Reaction

With the engine on, select ‘Driver Assistance → SCC Reaction’ from the settings menu to select the sensitivity of vehicle speed when following the front vehicle to maintain the set distance.

Warning Volume

With the engine on, select ‘Driver Assistance → Warning Volume’ from the Settings menu to change the Warning Volume ‘High’, ‘Medium’ or ‘Low’ for Smart Cruise Control.

If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.

Information

If the engine is restarted, Warning Volume will maintain the last setting.
