Hyundai Elantra (CN7): Windshield Glass / Components and components location

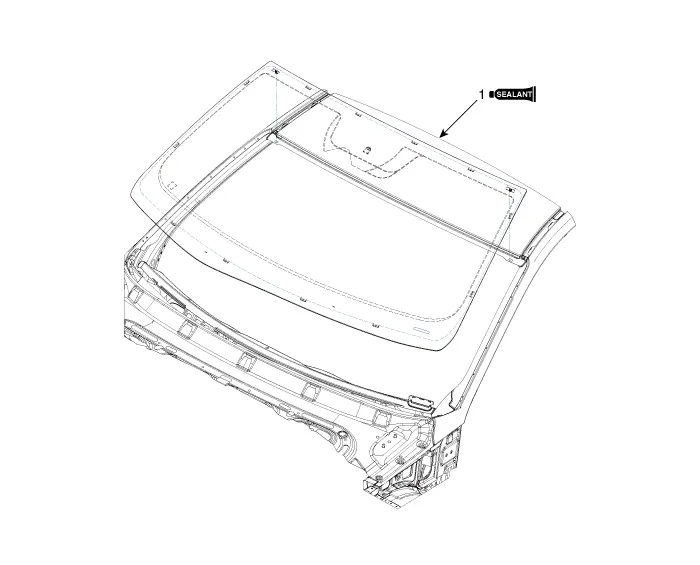

| Components |
| 1. Windshield glass |
Removal • Put on gloves to prevent hand injuries. • Use seat covers to avoid damaging any surfaces.
