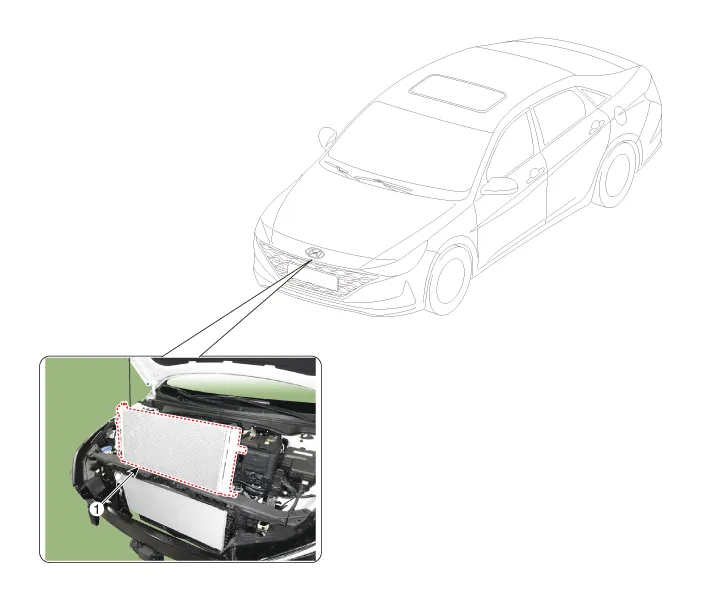

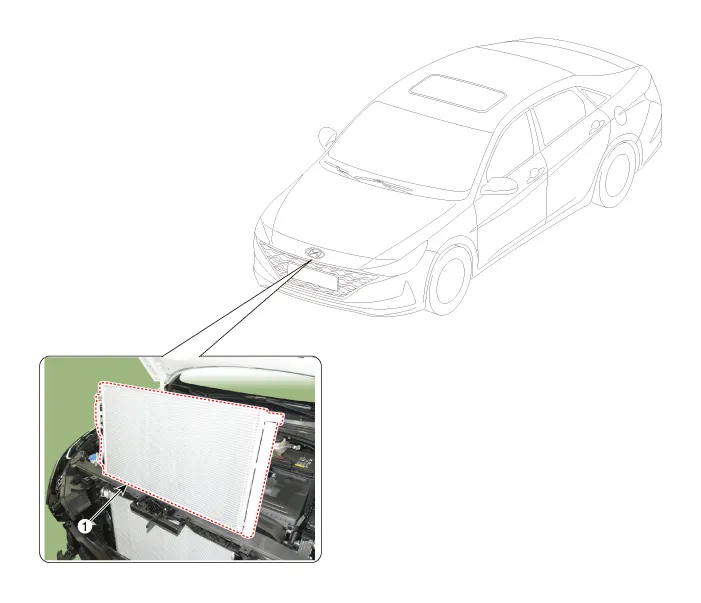

| Components Location |

| 1. Condenser |

| 1. Condenser |
| Inspection |
| 1. | Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers. |
| 2. | Check the condenser connections for leakage, and repair or replace it, if required. |
| Replacement |
| 1. | Recover the refrigerant with a recovery / recycling / charging station. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Remove the front bumper. (Refer to Body - "Front Bumper Assembly") |

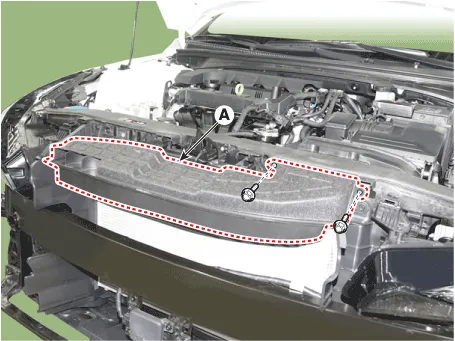

| 4. | Loosen the mounting bolts, remove the air duct (A).
|

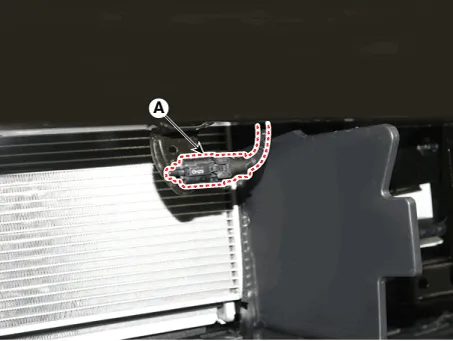

| 5. | Remove the ambient temperature sensor (A)..
|

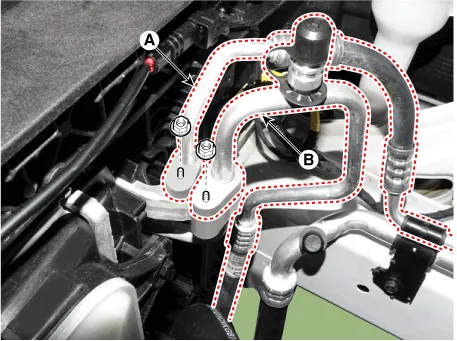

| 6. | Loosen the mounting nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser.
|

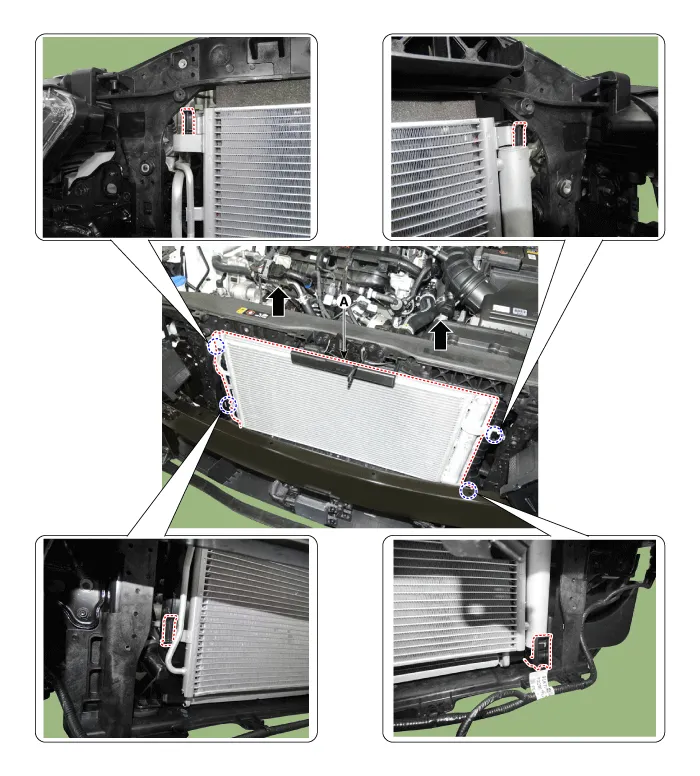

| 7. | Loosen the mounting pin-type retainers and bolts, remove the side air guard (A).
|

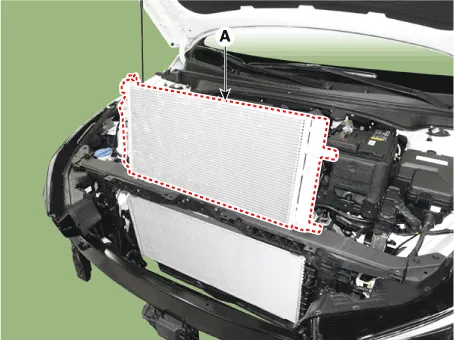

| 8. | Remove the condenser (A) from radiator.
|
| 9. | To install, reverse the removal procedure.
|
| 1. | Recover the refrigerant with a recovery / recycling / charging station. |
| 2. | Disconnect the negative (-) battery terminal. |
| 3. | Remove the front bumper. (Refer to Body - "Front Bumper Assembly") |

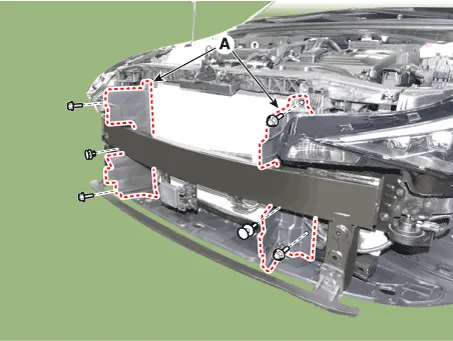

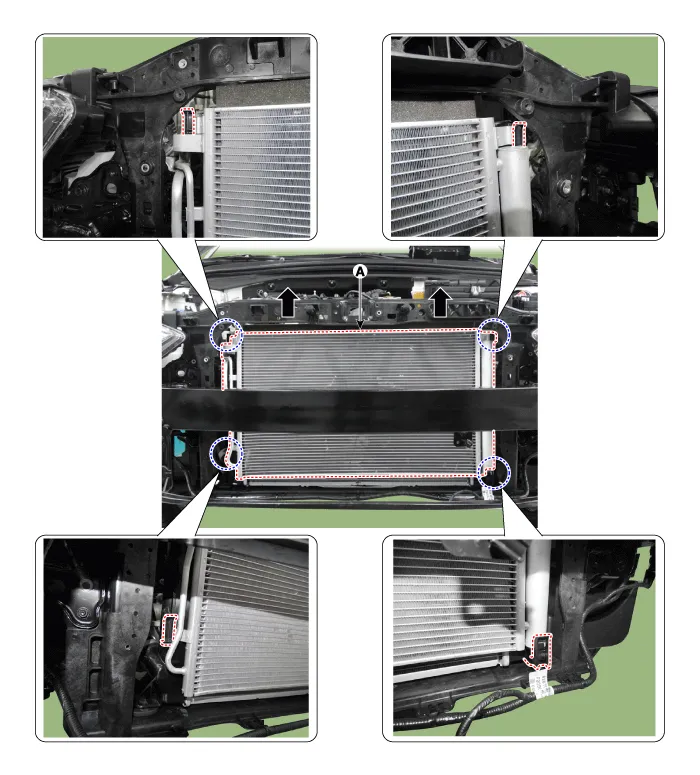

| 4. | Loosen the mounting bolts, remove the air guard (A).
|
| 5. | Remove the intercooler. (Refer to Engine Mechanical System - "Intercooler") |
| 6. | Remove the hood latch assembly. (Refer to Body - "Hood Latch Assembly") |
| 7. | Loosen the mounting nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser.
|

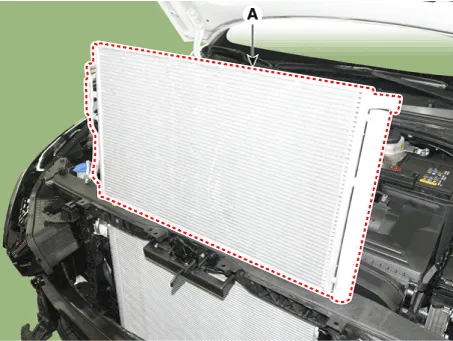

| 8. | Remove the condenser (A) from radiator.
|
| 9. | To install, reverse the removal procedure.
|
