Hyundai Elantra (CN7): Emergency Call System / Components and components location

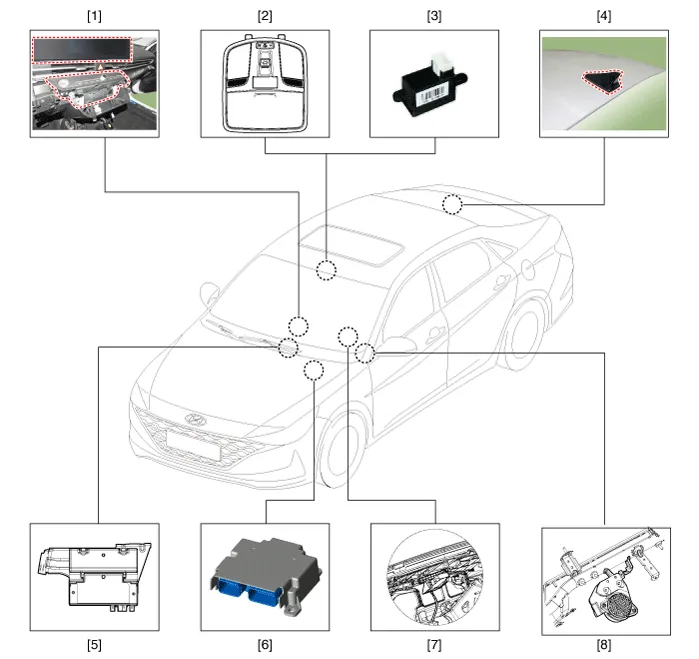

| Components |
| 1. AVN head unit & monitor 2. Emergency call system button 3. Emergency call system MIC 4. Roof antenna | 5. Emergency call unit 6. Supplemental Restraint System Control Module (SRSCM) 7. Emergency call crash pad antenna 8. Emergency call speaker |
DescriptionEmergency Call (eCall)When an accident occurs or the user's request is detected, it notifies the call center of the vehicle status using the wireless network so that the center can provide necessary emergency service.
Components and components location Component • The eCall unit for AVN is equipped in AVN head unit. Repair procedures Removal You must make sure turn RED LED ON if you do any of the following.
