Hyundai Elantra (CN7): Lighting System / Components and components location

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body Electrical System / Lighting System / Components and components location

Component Location

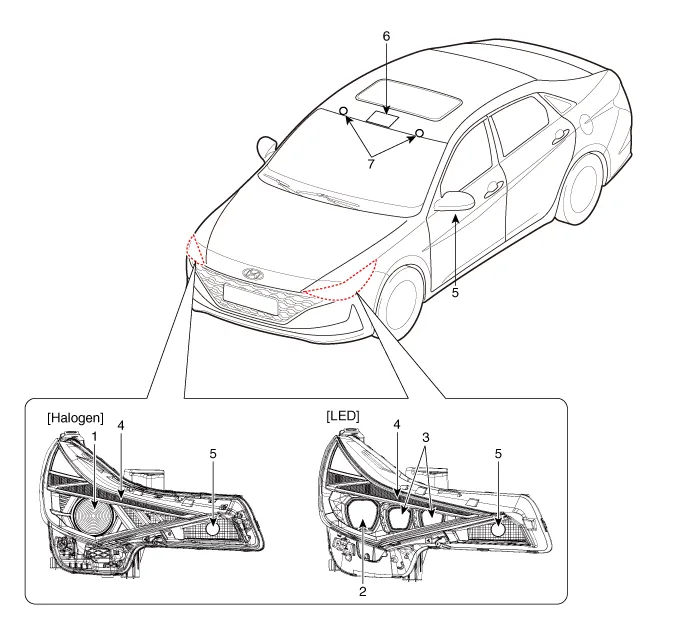

1. High/Low beam
2. Low beam
3. High beam
4. Position lamp&DRL
5. Front turn signal lamp
6. Map lamp
7. Vanity lamp

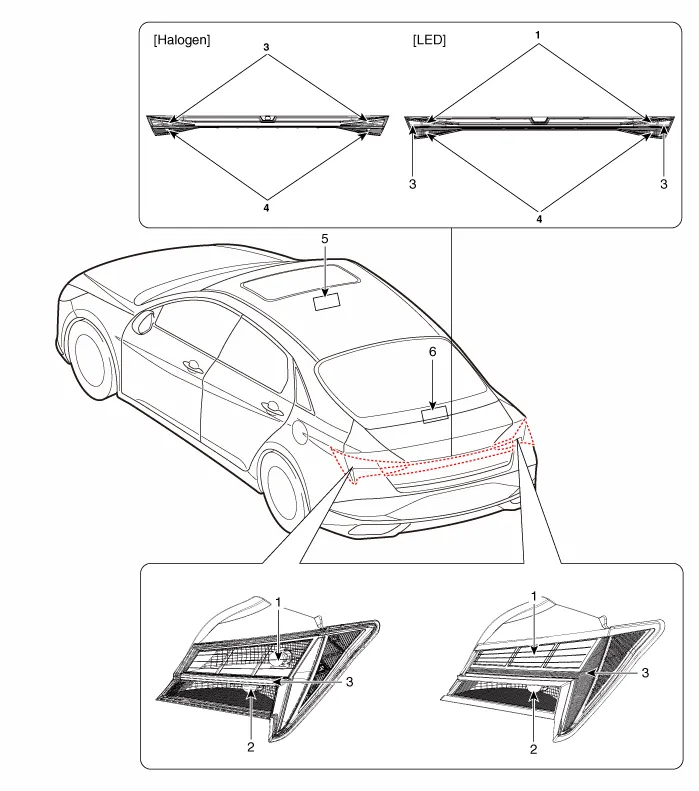

1. Stop lamp
2. Turn signal lamp
3. Tail lamp
4. Back up lamp
5. Room lamp
6. High mounted stop lamp

    Specification Item Type Bulb Watt (W) FrontHead lampHalogenLow beam / High beam9005L+60DRL/Position lampLEDLEDLEDLow beamLEDLEDHigh beamLEDLEDDRL/Position lampLEDLEDTurn signal lampPY21W21Door mirror turn signal lamp LEDLEDRearRear combinationHalogenTail lampW5W5Tail / Stop lampP21/5W21 / 5Back up lampW 16W16Turn signal lampPY 21W21LEDTail / Stop lampLEDLEDBack up lampW 16W16Turn signal lampPY21W21Back up lampPY21W 21LEDLEDLicense plate lamp W5W5InteriorMap lampSunroof not appliedW10W10Sunroof appliedW1010Room lampFESTOON8Luggage lamp FESTOON5Vanity lamp FESTOON5
