Hyundai Elantra (CN7): Front View Camera System / Components and components location
| Components Location |

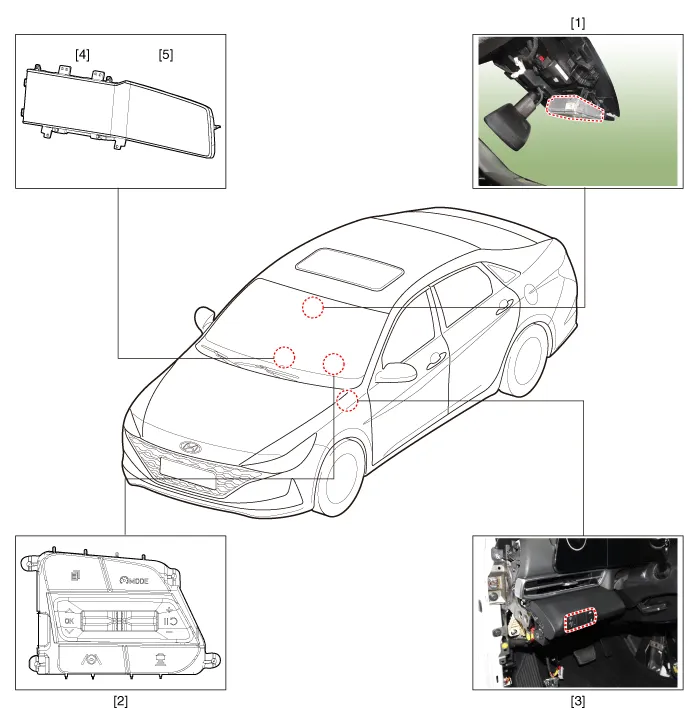

| 1. Front view camera (FR_CMR) 2. LKA ON/OFF switch (Remote control switch) 3. LKA ON/OFF switch | 4. Cluster 5. AVN head unit |
Description and OperationBlcok Diagram • This system monitors the driving situations through the radar and the camera.
Variant Coding When you need variant coding:– Replace Front View Camera with a new one※ EOL Variant Coding and calibration required for new replacementFront View Camera Variant CodingFront view camera variant coding makes it possible to operate functions for each vehicle type.
