Hyundai Elantra (CN7): Lighting System / High Mounted Stop Lamp
Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the rear package tray trim. (Refer to Body - "Rear Package Tray Trim") |

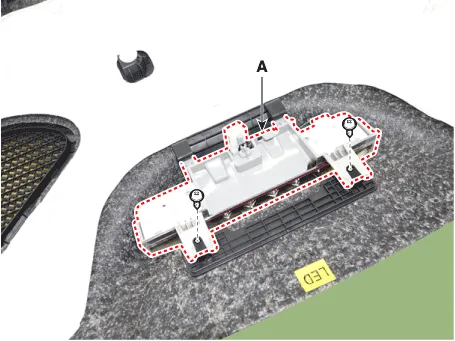

| 3. | Loosen the mounting screws and remove the high mounted stop lamp (A).
|
| Installation |
| 1. | Install the high mounted stop lamp. |
| 2. | Install the rear package tray trim. |
| 3. | Connect the negative (-) battery terminal. |
Repair procedures Removal1.Disconnect the negative (-) battery terminal.2.Push the lock pin (B) and remove the license lamp (A).3.Disconnect the license lamp connector (A).
Repair procedures RemovalOutside Combination Lamp1.Disconnect the negative (-) battery terminal.2.Remove the combination lamp cover (A).3.Disconnect the rear combination lamp connector (A).
