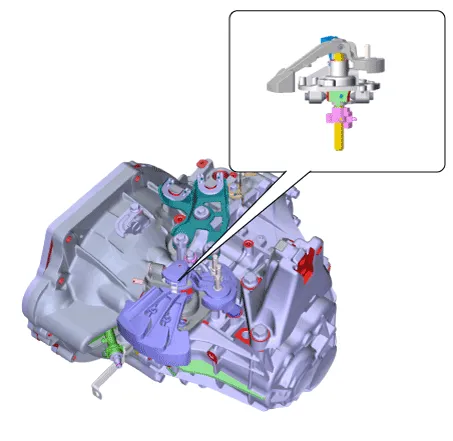

| Description |

| Removal |
| 1. | Set shift lever to N position. |
| 2. | Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System - "Air Cleaner") |
| 3. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |

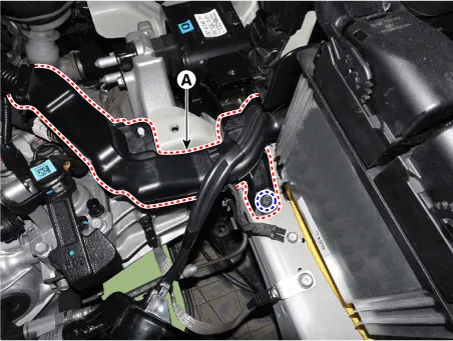

| 4. | Loosen the bolt and then separate the engine wiring (A).
|

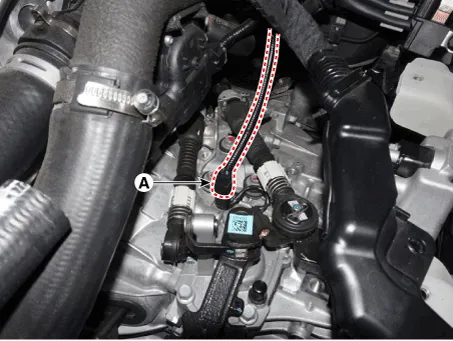

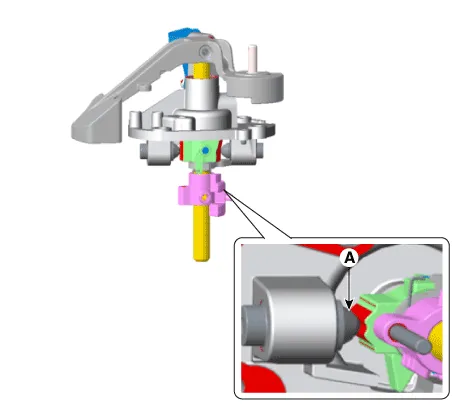

| 5. | Disconnect the back-up lamp switch connector (A).
|
| 6. | Remove the snap pin (A) and then separate the shift cable (B) and the select cable (C) from the control shaft complete.
|

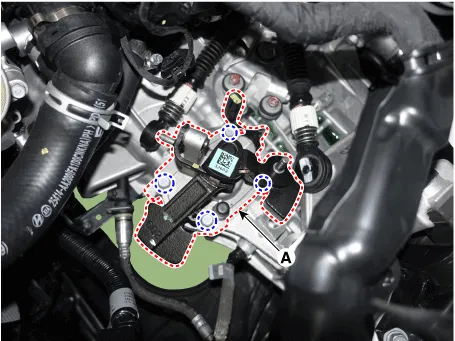

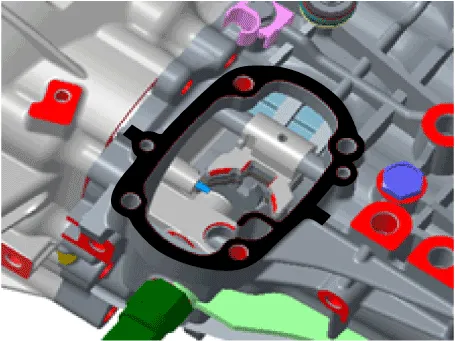

| 7. | Remove the control shaft assembly (A) after loosening the bolts.
|
| Installation |
| 1. | To install, reverse the removal procedures. |
|
|
