Hyundai Elantra (CN7) 2021-2026 Service Manual / Engine Mechanical System / Cooling System / Coolant Reservoir Tank

Repair procedures

Removal and Installation
1.
Drain the coolant.
(Refer to Cooling System - "Coolant")
2.
Disconnect the degassing hose (A) and coolant reservoir tank hose (B).

3.

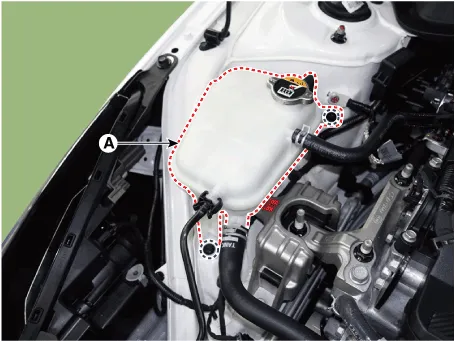

Remove the coolant reservoir tank (A).
Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.
Install in the reverse order of removal.
5.
Fill with engine coolant.
(Refer to Cooling System - "Coolant")

•
The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.

    Repair procedures Replacement and Air Bleeding    â€¢ Never remove the reservoir tank cap when the engine is hot.
