Hyundai Elantra (CN7): Inside Rearview Mirror / Day/night rearview mirror

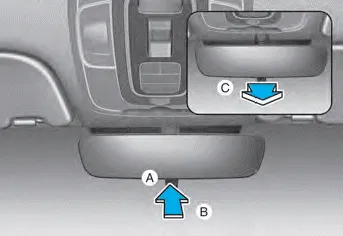

[A] : Lever, [B] : Day, [C] : Night
Make this adjustment before you start driving and while the day/night lever is in the day position.
Pull the day/night lever towards you to reduce glare from the headlamps of the vehicles behind you during night driving.
Remember that you lose some rearview clarity in the night position.
Before driving your vehicle, check to see that your inside rearview mirror is properly positioned. Adjust the rearview mirror so that the view through the rear window is properly centered.
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror with an Integrated HomeLink® Wireless Control System. During nighttime driving, this feature will automatically detect and help reduce rearview mirror glare.
