Hyundai Elantra (CN7): Timing System / Front Oil Seal
Repair procedures
| Replacement |
| 1. | Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley") |

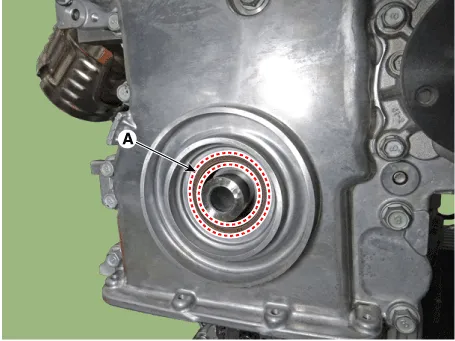

| 2. | Remove the front oil seal (A).
|

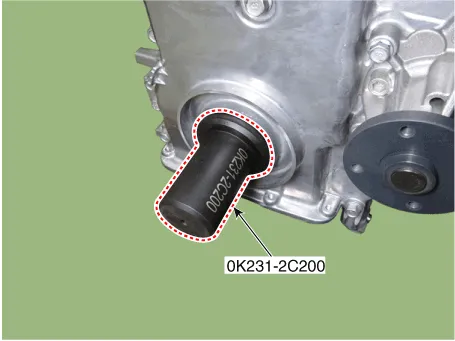

| 3. | Using the SST (0K231-2C200), install a new front oil seal.
|
| 4. | Install in the reverse order of removal. |
Repair procedures Removal • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
