Components and components location

Component Location

[General type]

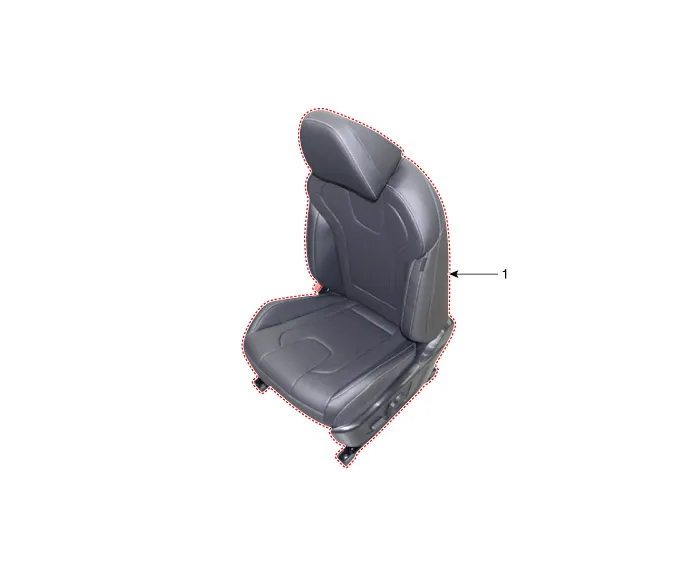

1. Front seat assembly

[N Line]

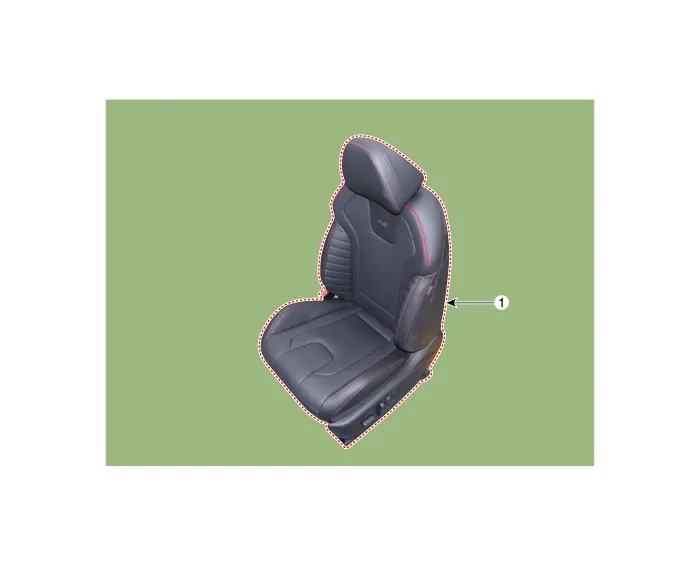

1. Front seat assembly

Repair procedures

Replacement

Loosen the front seat mounting bolts.

Tightening torque :

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

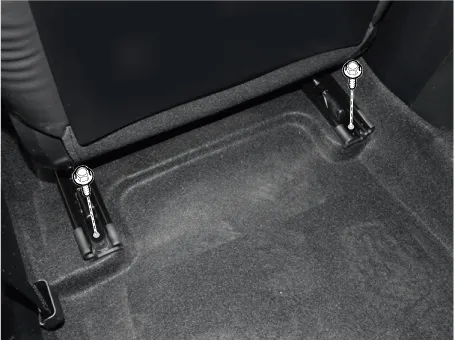

[Front]

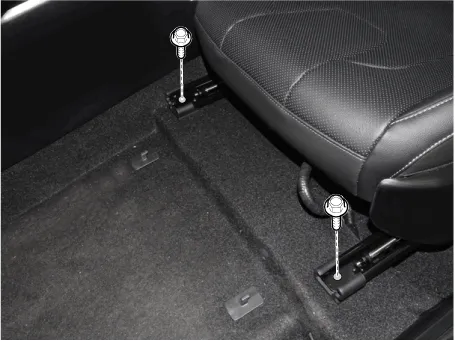

[Rear]

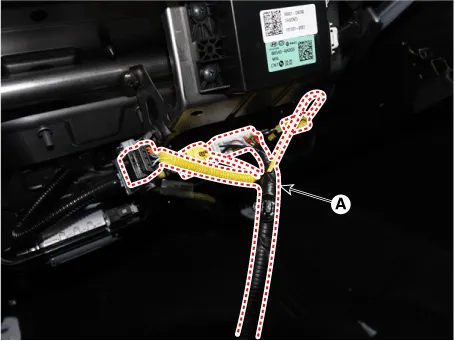

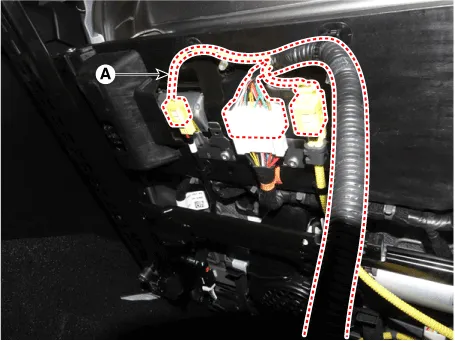

2.	Press the lock pin, separate the connectors (A).

To install, reverse the removal procedure.

The installation procedures of seat mounting bolts

•	Push the seat to the rear end of slides and initially tighten the front mounting bolts.

•	Push the seat to the front end of slides and completely tighten the rear mounting bolts.

•	Send the seat to the rear end again to completely tighten the front mounting bolts.

•	Check the seat for smooth movement.

•	For the non - automatic slide seats, check the seats are fixed at each designated fixing position.
