Hyundai Elantra (CN7): Parking Brake System / Parking Brake Cable

Hyundai Elantra (CN7) 2021-2026 Service Manual / Brake System / Parking Brake System / Parking Brake Cable

Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Release the parking brake.
3.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
4.

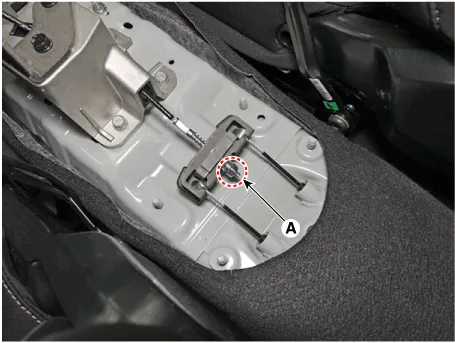

Loosen the adjusting nut (A) of parking brake cable adjuster.

5.

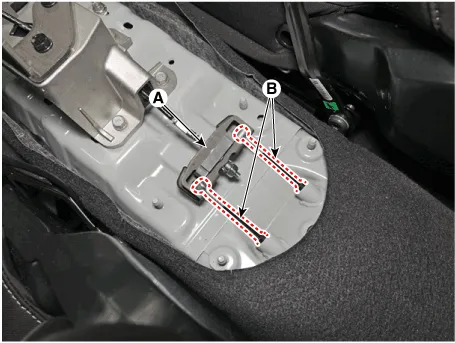

Disconnect the parking brake cable (B) from the equalizer assembly (A).

6.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
7.

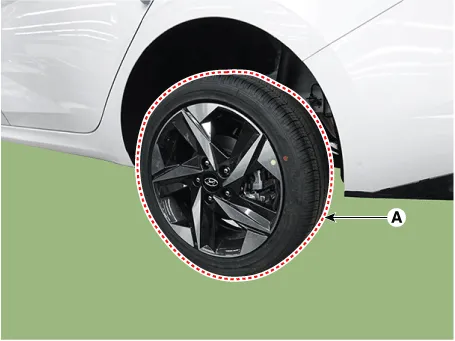

Remove the rear wheel and tire (A) from the rear hub.

•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

8.

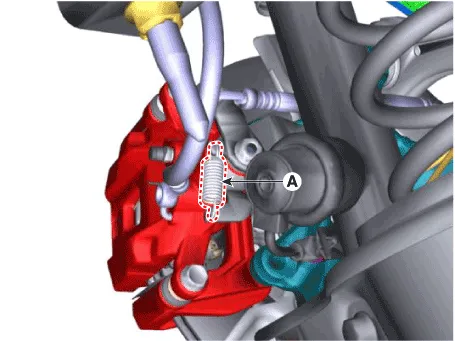

Remove the return spring (A).
[Rear torsion beam type]

[Rear multi link type]

9.

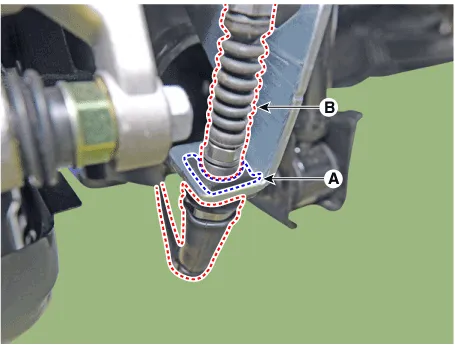

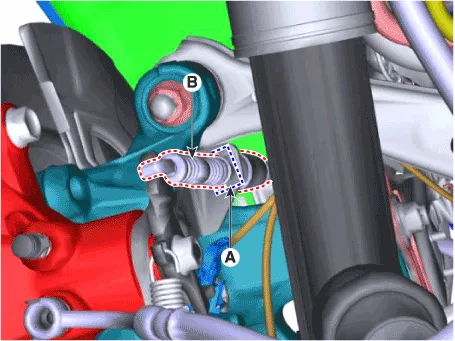

Disconnect the parking cable (B) after remove the parking brake cable fixing clip (A).
[Rear torsion beam type]

[Rear multi link type]

10.

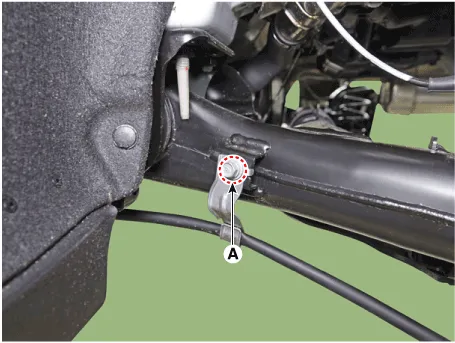

Remove the parking brake cable bracket after loosening the mounting bolt (A).
Tightening torque :
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
[Rear torsion beam type]

11.

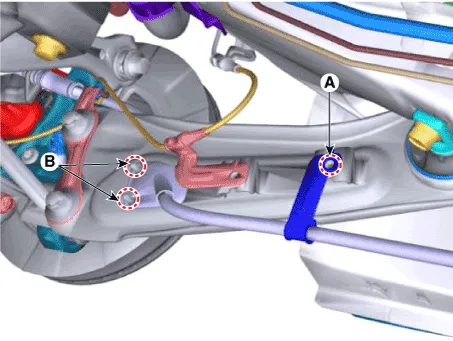

Remove the parking brake cable bracket after loosening the mounting bolt (A) and nuts (B).
[Rear multi link type]

12.

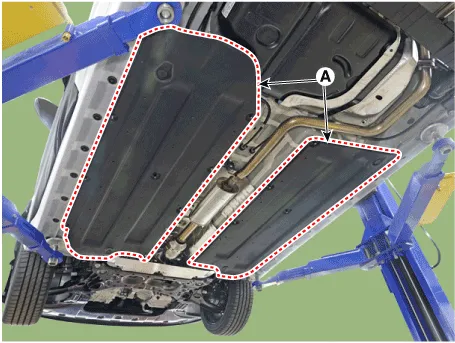

Remove the floor under cover (A).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

13.

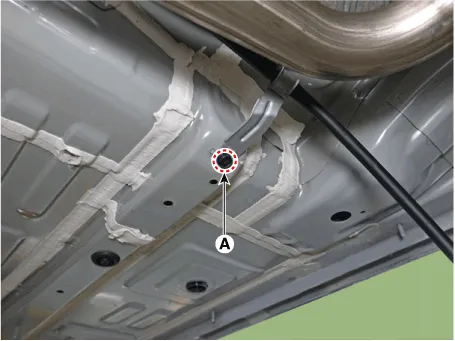

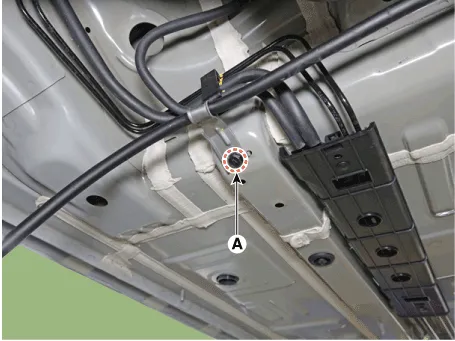

Remove the parking brake cable bracket mounting bolt (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
[LH]

[RH]

14.

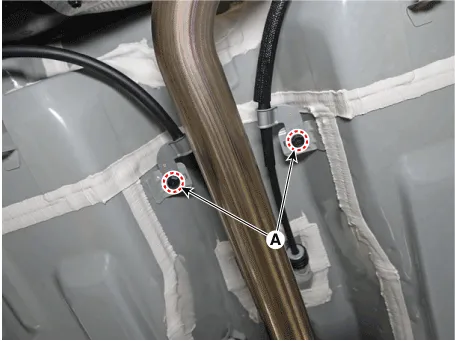

Remove the parking brake cable after loosening the mounting bolts (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Installation
1.
To install, reverse the removal procedures.
2.

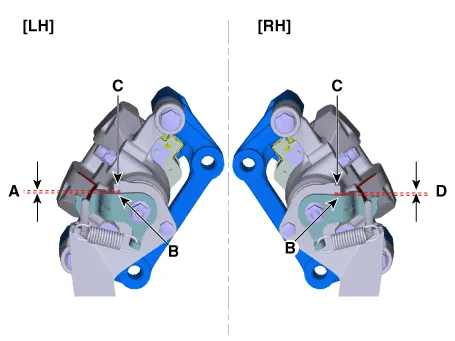

Fasten the adjusting nut and tighten the parking brake cable until the sum of distance (A and D) from the stopping point to the activating lever (B) and to stopper (C) is less than 3 mm.
Distance (A + D) : Max. 3 mm (0.12 in)

3.
Release the parking brake lever fully, and check that parking brakes do not drag when the rear wheels are turned. Readjust if necessary.
4.
Make sure that the parking brakes are fully applied when the parking brake lever is pulled up fully.
