Hyundai Elantra (CN7): Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor
Hyundai Elantra (CN7) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor
Schematic diagrams

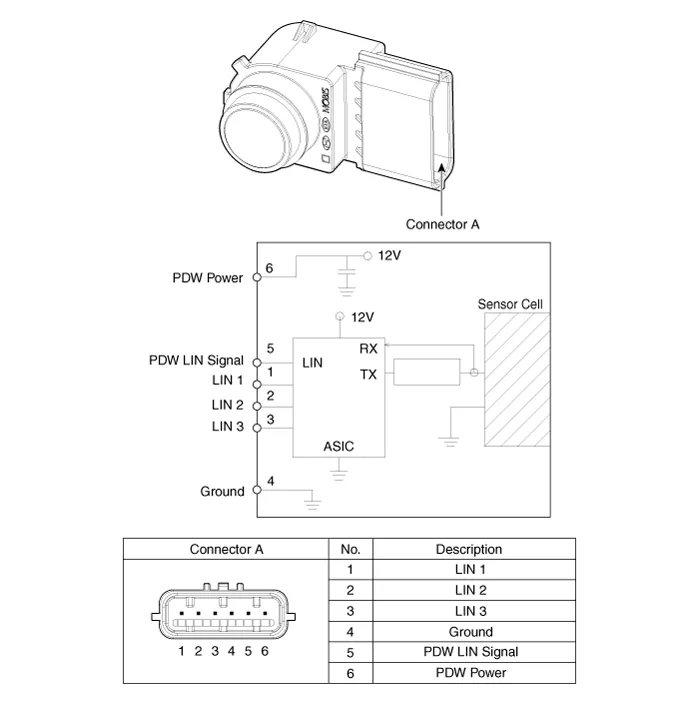

| Circuit Diagram |
Repair procedures
| Removal |
| 1. | Remove the bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") |

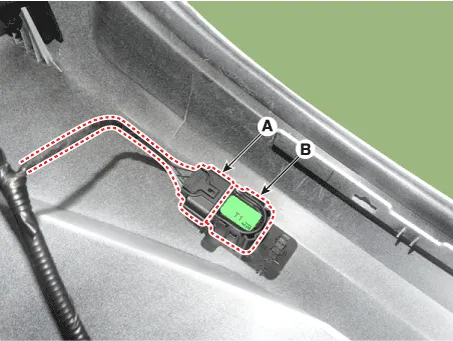

| 2. | Disconnect the ultrasonic sensor connector (A) and remove the ultrasonic sensor (B).
|
| Installation |
| 1. | Install the ultrasonic sensor. |
| 2. | Install the bumper cover. |
Specifications Item Specification Ultrasonic sensorVoltage ratingDC 12 VDetecting range11.8 - 47.2 in.
