Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to bend or scratch the trim and panels.
1.

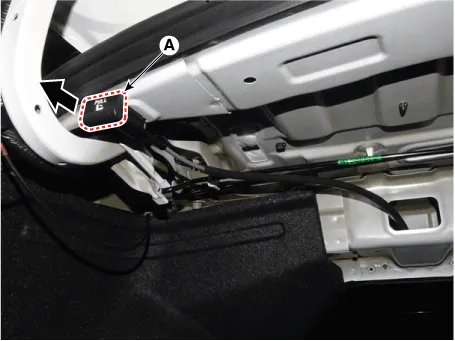

Fold the rear seat back assembly [LH] (A) by pulling the folding lever in the direction of the arrow.

2.

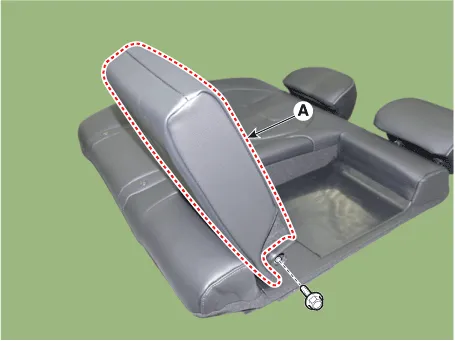

Separate the rear back armrest (A) after removing the cap and then loosening the bolt.

3.
To install, reverse the removal procedure.
