Hyundai Elantra (CN7): Rear Seat / Rear Seat Folding Lever

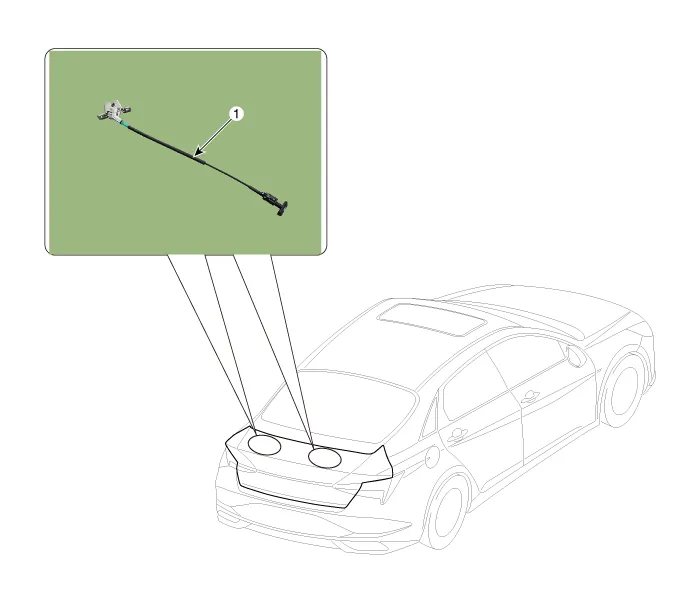

Components and components location
| Components |
| 1.Rear seat folding lever |
Repair procedures
| Replacement |
| 1. | Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.
|
| 2. | Loosen the mounting clips and bolts, remove the rear seat folding lever (A).
|
| 3. | To install, reverse the removal procedure. |
Repair procedures Replacement • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Components1. Front seat belt retractor2. Height adjust 3. Front seat belt upper anchor4. Rear seat belt retractor [RH]5.
