Hyundai Elantra (CN7): Body (Interior and Exterior) / Front Seat Belt

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Front Seat Belt

Components and components location

Components

1. Front seat belt retractor
2. Height adjust
3. Front seat belt upper anchor
4. Rear seat belt retractor [RH]
5. Rear seat belt retractor [CTR]
6. Seat belt buckle [RH]
7. Seat belt buckle [LH, CTR]
8. Rear Seat belt lower anchor

Front Seat Belt Pretensioner

Components and components location

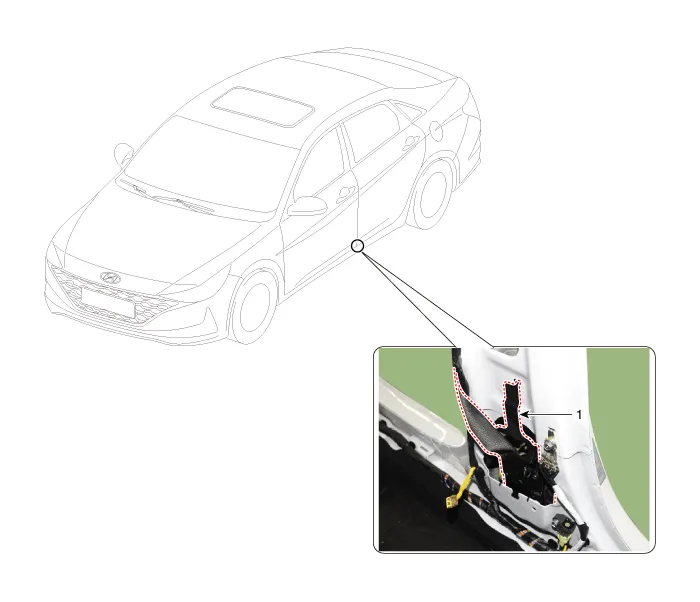

Components Location

1. Front seat belt pretensioner


Repair procedures

Replacement

•
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
3.

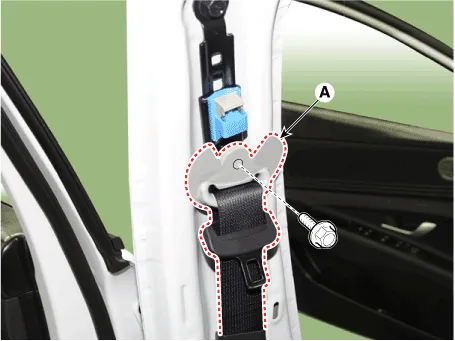

After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.

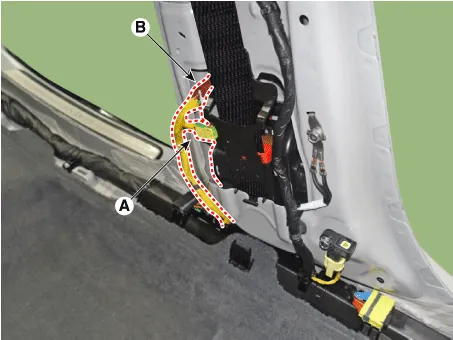

Separate the seat belt retractor connector (A) and pre-active seat belt connector (B).

5.

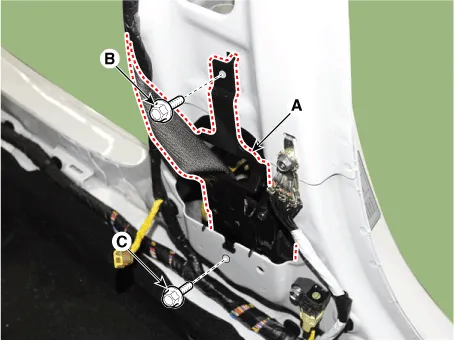

Loosen the mounting bolt (B) and (C), remove the front seat belt retractor (A).
Tightening torque :
Bolt B : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt C : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

6.
Install in the reverse order of removal.

•
After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin - type retainers).

Height Adjust

Components and components location

Component Location

1. Height adjust


Repair procedures

Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.
After loosening the mounting bolts, remove the height adjust (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).

Front Seat Belt Buckle

Components and components location

Components Location

1. Front seat belt buckle


Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

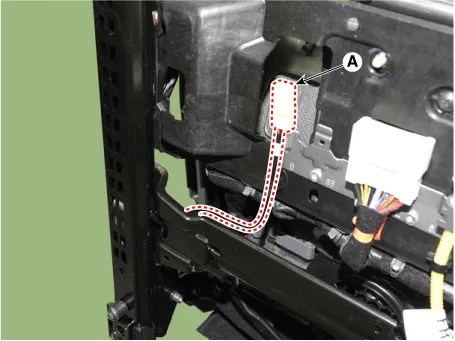

Disconnect the front seat belt buckle connector wiring (A).

3.

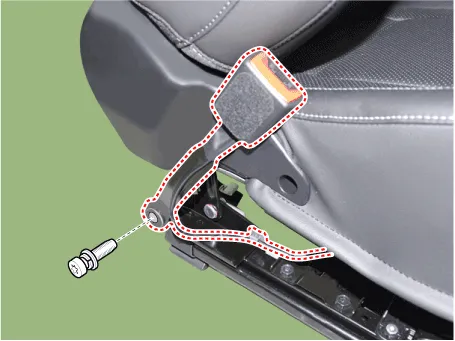

After loosening the mounting bolt, remove the front seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

4.
To install, reverse the removal procedure.

•
Make sure the connector Is connected in properly.
•
Replace any damaged clips.
