Hyundai Elantra (CN7): Motor Driven Power Steering / Repair procedures

Hyundai Elantra (CN7) 2021-2025 Service Manual / Steering System / Motor Driven Power Steering / Repair procedures

A/S Repair produres

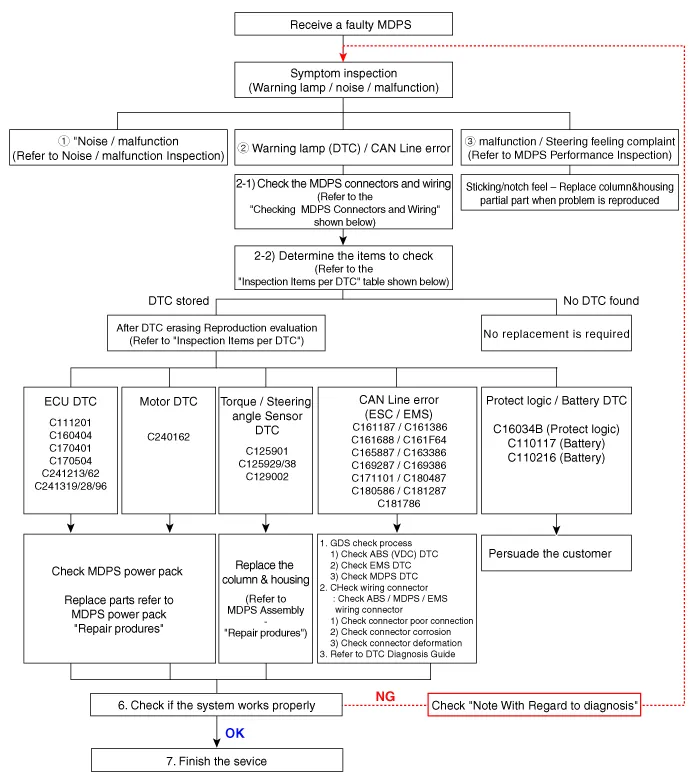

MDPS System A/S Workflow
※ For detailed DTC or other DTC A/S procedures, see "CN7 MDPS DTC Diagnostic Guide"

① Noise / malfunction Inspection

② Warning lamp (DTC) / CAN Line error
2 - 1 Checking Connectors and Wiring
1.
Checking Connectors and Wiring.
Check for damage, push-back, or improper connection in each connector and wiring.
(1)
Check the wiring on the vehicle side.
–
Check for open / short - circuit due to faulty connection, damage, or foreign substance.

(2)

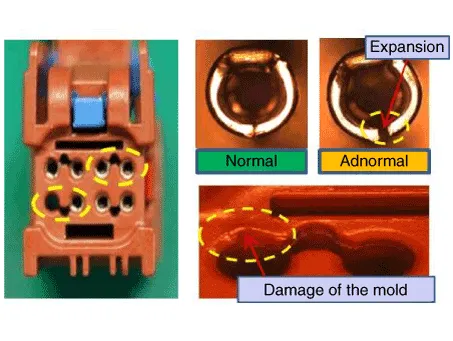

Check the motor connector.
–
Terminal Expansion and damage


•
Must be replaced the MDPS motor if occur terminal expansion and damage.
(Refer to Motor Driven Power Steering - "MDPS Power Pack Assembly")
(3)

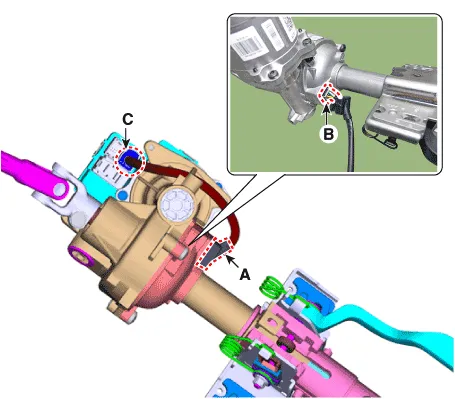

Remove the grommet (A) and then check the wiring on the TAS side (B) and ECU side (C).
–
Check for damage, push-back, or improper connection in each connector and wiring.


•
For DTC C125901 / C125929 / C125938 / C129002, exchange MDPS wiring.
(Refer to Motor Driven Power Steering - "MDPS Wiring")
•
If problems are found during the MDPS wiring check, replace the MDPS column & housing.
(Refer to Motor Driven Power Steering - "MDPS Column & Housing")
2 - 2 Inspection Items per DTC
※ For detailed DTC or other DTC A/S procedures, see "CN7 MDPS DTC Diagnostic Guide"
DTC
Problem
First analysis method
How to repair
C129002
Torque sensor signal error
First erase DTC,
When the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the column & housing (56390)
check connector connection
C125901
Steering angle signal error
Earase DTC after resetting Steering angle zero point
C125929
check connector connection
C125938

C111201
Torque sensor power supply error
First erase DTC, check connector connection
When the sensor connector flows, the warning lamp reoccurs Replace the sensor cable, and replace the power pack (56370)
C160404
ECU hardware error
Check after erasing the DTC
In case of reoccurrence, replace MDPS power pack (56370)
C170401
Relay breaking of a wire
C170504

ECU over/discharge error
C241216
Motor circuit break / short
C241262
Motor current error
C241319
Over current error
C241328
Motor electric current gate error
C241396
Broken the motor current sensor
C240162
Motor circuit error
C126154
Steering angle zero point error
Check after resetting Steering angle zero point
Resetting Steering angle zero point or replace column & housing (56390)
Check sensor connector poor connect
C161187
Not received the EMS CAN message
1. Check chassis CAN condition

C161F64
Vehicle speed monitoring error
2. Check connector connection
Earase DTC (No MDPS replacement)
C161F86
Vehicle speed signal error
3. Check engine ECU

C161688
CAN BUS OFF
4. Start OFF history confirmation message while driving

C162887
Not received the cluster CAN signal
2. Check cluster connector connection

C163386
Cluster display vehicle speed error

C169287
Not received the VSM message
Check ESC, check chassis CAN condition

C169386
ESC signal error

C171101
ECU abnormal end
Recheck after erasing the DTC

C180487
Cannot be received the LKA message
Check LKA, check CAN line

C180586
LKA signal error

C181287
Not received the gateway CAN message
Check gateway

C181786
Gateway CAN signal error


③ MDPS Performance Inspection
1.
Inspect steering angle and DTCs relevant to the steering system.
2.
Inspection for heavy steering effort
(1)
Inspect tire pressure and width.
(2)
Check DTCs relevant to the CAN communication error.
(3)
Check the wheel alignment.
④ MDPS common problems
Case 1
Case 2
Case 3

Multifunction switch noise

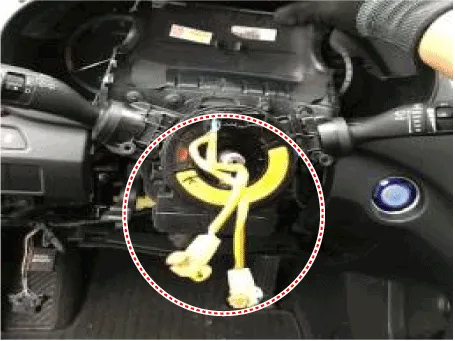

Clock spring noise
DAB / Wire noise
Retighten the bolt
Replace clock spring
Rearrange and replace DAB

Case 4
Case 5
Case 6

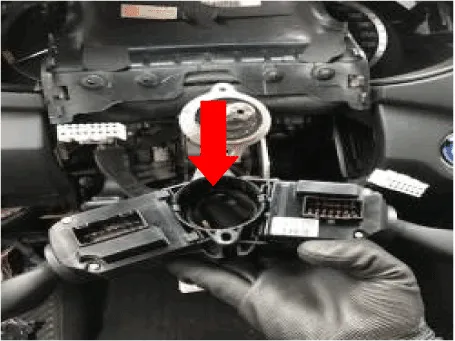

Multifunction switch noise

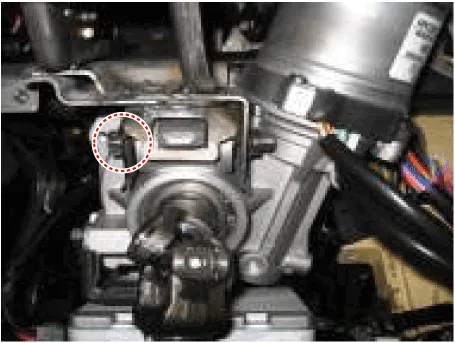

MB nut mount defect

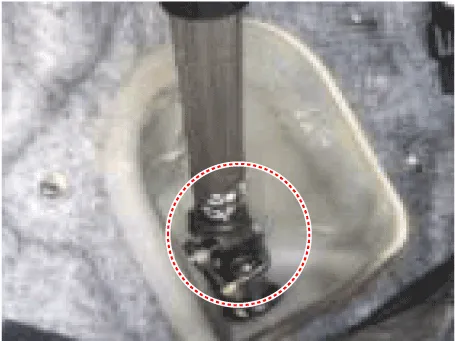

M10 nut mount defect
Replace multifunction switch
Retighten nut
Retighten nut

Case 7
Case 8

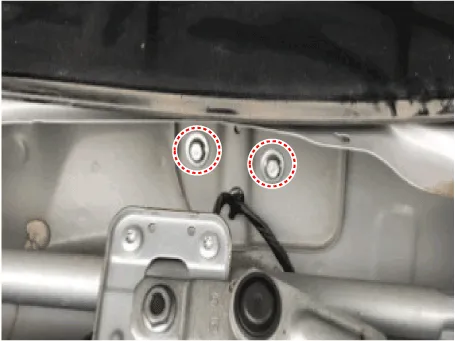

Cowl top bolt mount defect

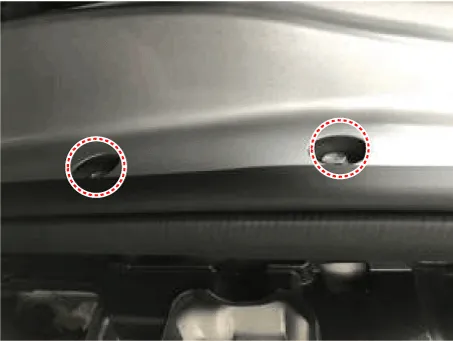

Cowl bar nut mount defect
Retighten cowl top bolt
Replace clock spring


Cautions to be taken when handling the MDPS (Motor Driven Power Steering)
•
Failure occurs due to internal damage because of the drop of and shock and excessive external force on the new partial component.
→ Be cautious of shock on the partial component and replace the damaged part (due to drop, etc.) with a new one.
•
When fastening the steering, excessive impact may result in twisting the center point of the torque sensor.
•
When removing/installing the connector the wiring may be damaged (deformed) by excessive external force.
•
Be cautious when storing and replacing the partial components under the abnormal temperature and humidity conditions.

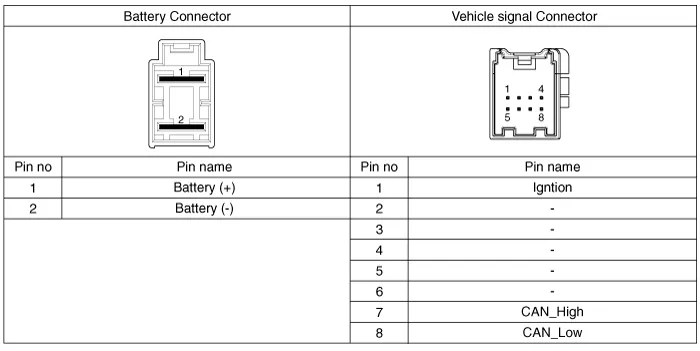

    Schematic DiagramsC-MDPSTerminal function Type Pin No Description Battery1Battery +2Battery -VSS1IGN2-3-4-5-6-7HIGH CAN8LOW CAN
