Hyundai Elantra (CN7): Suspension System / Specifications

Specifications
Front Suspension
Item
Specification
Suspension type
MacPherson Strut
Shock absorber
Type
Advanced Valve (RS Valve)

Rear Suspension
Item
Specification
Suspension type
Torsion Beam Axle
Shock absorber
Type
Advanced Valve (RS Valve)

Wheel & Tire
Item
Specification
Front wheel
Rear wheel
Wheel
Steel
6.0J * 15
Aluminum
6.0J * 15
6.5J * 16
7.0J * 17
Tire
195/65 R15
205/55 R16
225/45 R17
Spare tire
T125/80D15
T125/80D16

Item
Normal Load
Max Load
Front
Rear
Front
Rear
Tire pressure
kPa (bar/psi)
195/65 R15
235 (2.35/34)
215 (2.15/31)
240 (2.4/35)
240 (2.4/35)
205/55 R16
225/45 R17
T125/80D15
420 (4.2/60)
T125/80D16

Wheel Alignment
Item
Specification
Front
Rear
Toe-in
Total
0.1° ± 0.2°
0.26° ± 0.3°
Individual
0.05° ± 0.1°
0.13° ± 0.15°
Camber angle
-0.56° ± 0.5° (N.A / CHINA)
-0.5° ± 0.5° (DOM / AUS)
-0.37° ± 0.5° (GEN / M.E / EU / RUS)
-0.30° ± 0.5° (BRZ / MEXICO)
-1.2° ± 0.5°
Caster angle
4.55° ± 0.5°
-
King - pin angle
14.5° ± 0.5°
-
Ride height
383mm ± 10mm
383mm ± 10mm

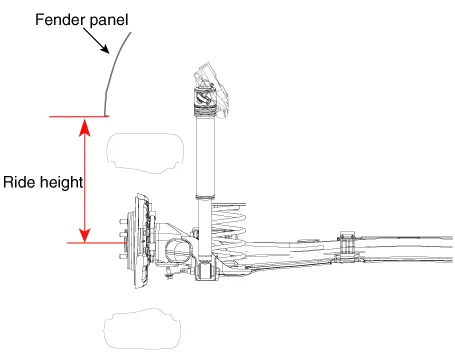

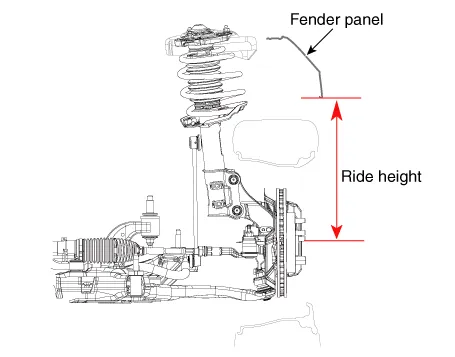

[Ride height]
Front
Rear


Tightening torque
Front Suspension
Item
Tightening torque (kgf.m)
N.m
Kgf.m
lb-ft
Tire wheel hub nuts
107.9 - 127.5
11.0 - 13.0
79.6 - 94.0
Lower arm to sub frame A bush
68.6 N.m + 180°
7 kgf.m + 180°
50.6 lb-ft + 180°
Lower arm to sub frame G bush
68.6 N.m + 270°
7 kgf.m + 270°
50.6 lb-ft + 270°
Lower arm to front axle
68.6 - 80.4
7.0 ~ 8.2
50.6 - 59.3
Tie rod end to front axle
34.3 - 44.1
3.5 ~ 4.5
25.3 - 32.5
Steering gear box to sub frame
107.9 - 127.5
11.0 - 13.0
79.6 - 94.0
Stabilizer bar to stabilizer link
98.1 - 117.7
10.0 - 12.0
72.3 - 86.8
Stabilizer bar to sub frame
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0
Stabilizer link to front strut assembly
98.1 - 117.7
10.0 - 12.0
72.3 - 86.8
Strut assembly to axle
156.9 - 176.5
16.0 - 18.0
115.7 - 130.2
Strut assembly to frame
53.9 - 73.5
5.5 - 7.5
39.8 - 54.2
Strut assembly self locking nut
98.1 - 107.9
10.0 - 11.0
72.3 - 79.6
Universal joint to pinion of steering gear
49.0 - 58.8
5.0 - 6.0
36.2 - 43.4
Sub frame mounting bolt and nut
176.5 - 196.1
18.0 - 20.0
130.2 - 144.7
Sub frame bracket stay mounting bolts
44.1 - 58.8
4.5 - 6.0
32.5 - 43.4
Roll rod mounting bolt & nut
107.9 - 127.5
11.0 - 13.0
79.6 - 94.0
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0

Rear Suspension
Item
Tightening torque (kgf.m)
N.m
Kgf.m
lb-ft
Tire wheel hub nuts
107.9 - 127.5
11.0 - 13.0
79.6 - 94.0
Rear shock absorber to frame
49.0 - 63.7
5.0 ~ 6.5
36.2 - 47.0
Rear shock absorber to torsion beam axle
98.1 - 117.7
10.0 - 12.0
72.3 - 86.8
Rear torsion beam axle to stay
68.6 N.m + 270°
7.0 kgf.m + 270°
50.6 lb-ft + 270°
Rear torsion beam axle stay to body (M12 bolts and nuts)
98.1 - 117.7
10.0 - 12.0
72.3 - 86.8
Rear torsion beam axle stay to body (M10 bolt)
44.1 - 53.9
4.5 ~ 5.5
32.5 - 39.8

    Troubleshooting Symptom Possible cause Remedy Hard steeringImproper front wheel alignmentCorrectExcessive turning resistance of lower arm ball jointReplaceLow tire pressureAdjustNo power assistRepair and replacePoor return of steering wheel to centerImproper front wheel alignmentCorrectPoor or rough rideImproper front wheel alignmentCorrectMalfunctioning shock absorberRepair or replaceBroken or worn stabilizerReplaceBroken or worn coil springReplaceWorn lower arm bushingReplace the lower arm assemblyAbnormal tire wearImproper front wheel alignmentCorrectImproper tire pressureAdjustMalfunctioning shock absorberReplaceWanderingImproper front wheel alignmentCorrectPoor turning resistance of lower arm ball jointRepairLoose or worn lower arm bushingRetighten or replaceVehicle pulls to one sideImproper front wheel alignmentCorrectExcessive turning resistance of lower arm ball jointReplaceBroken or worn coil springReplaceBent lower armRepairSteering wheel shimmyImproper front wheel alignmentCorrectPoor turning resistance of lower arm ball jointReplaceBroken or worn stabilizerReplaceWorn lower arm bushingReplaceMalfunctioning shock absorberReplaceBroken or worn coil springReplaceBottomingBroken or worn coil springReplaceMalfunctioning shock absorberReplaceWheel / tire noise, vibration and harshness concerns are directly related to vehicle speed and are not generally affected by acceleration, coasting or decelerating.

    Special Service Tools Tool (Number and Name) IIIustration Use 09546-3X100Shock absorber lock nut removal toolUsed for remove the shock absorber lock nut09568-1S100Ball joint removerSaperate the ball joint from the front alxe09551-AL100Rear torsion beam axle bush removal / installation toolRear torsion beam axle bush removal and installation tool
