Hyundai Elantra (CN7): Sunroof / Tilting the sunroof

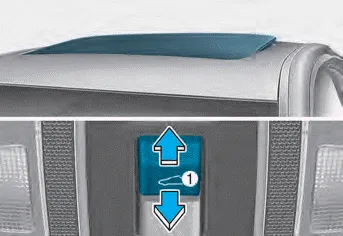

Tilt the sunroof open:
Push the sunroof control lever upward until the sunroof moves to the desired position.
To close the sunroof:
Press the sunroof lever forward until the sunroof moves to the desired position.
NOTICE
- Periodically remove any dirt that may accumulate on the sunroof guide rail or between the sunroof and roof panel, which can make a noise.
- Do not try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice, otherwise the motor could be damaged. In cold and wet climates, the sunroof may not work properly.
To open or close the sunroof(manual slide feature), push the sunroof control lever backward or forward to the first detent position. To open the sunroof (auto slide feature), push the sunroof control lever backward to the second detent position.
The sunshade will open automatically with the sunroof when the glass panel moves. If you want it closed, move the sunshade manually. NOTICE The sunroof is made to slide together with the sunshade.
