Hyundai Elantra (CN7): Sunroof / Sunshade

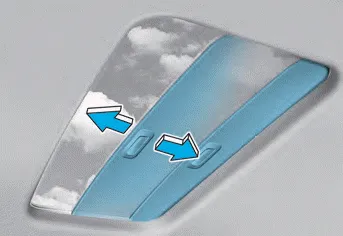

The sunshade will open automatically with the sunroof when the glass panel moves. If you want it closed, move the sunshade manually.
NOTICE
The sunroof is made to slide together with the sunshade. Do not leave the sunshade closed while the sunroof is open.
Tilt the sunroof open: Push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof: Press the sunroof lever forward until the sunroof moves to the desired position.
The sunroof may need to be reset if the following conditions occur: -- The battery is discharged or disconnected or the sunroof fuse has been replaced or disconnected.
