Components and components location

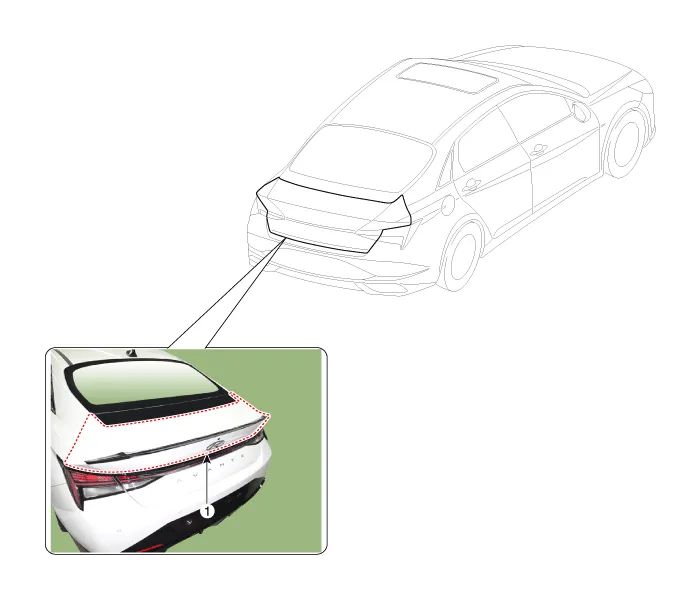

Component Location

1. Trunk lid back panel


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim")
2.

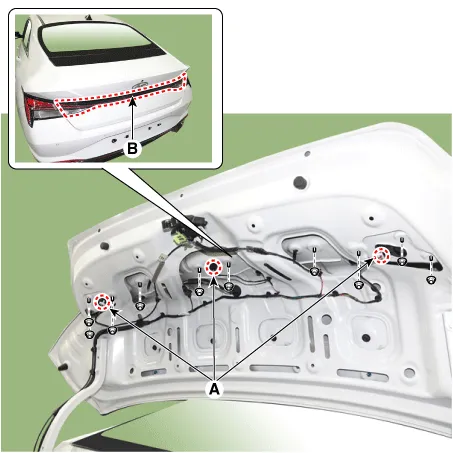

Disconnect the rear combination lamp connector (A).
3.
Loosen the mounting bolts, remove the rear combination lamp (B).

4.

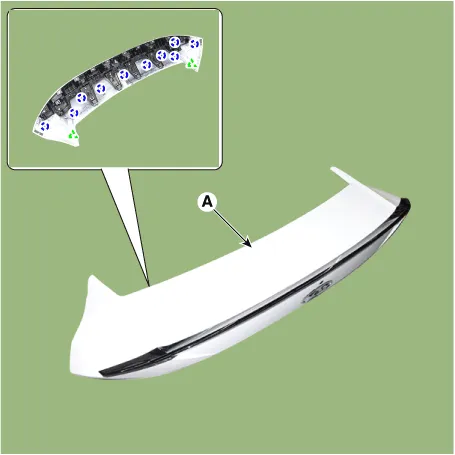

Loosen the mounting bolts, remove the trunk lid back panel (A).

5.
To install, reverse the removal procedure.

•
Make sure the connectors are connected in properly.
•
Replace any damaged clips.

    Repair procedures Replacement[Trunk lid latch]    â€¢ When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

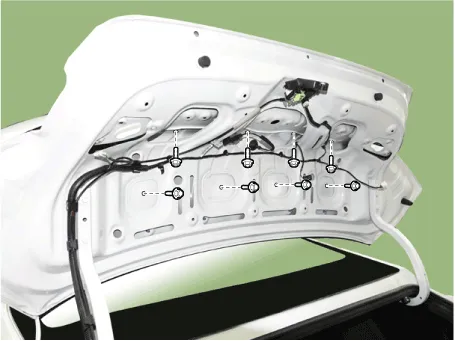

    Repair procedures Replacement    â€¢ Do not apply sealant to the body. 1.Remove the trunk lid weatherstrip (A).
