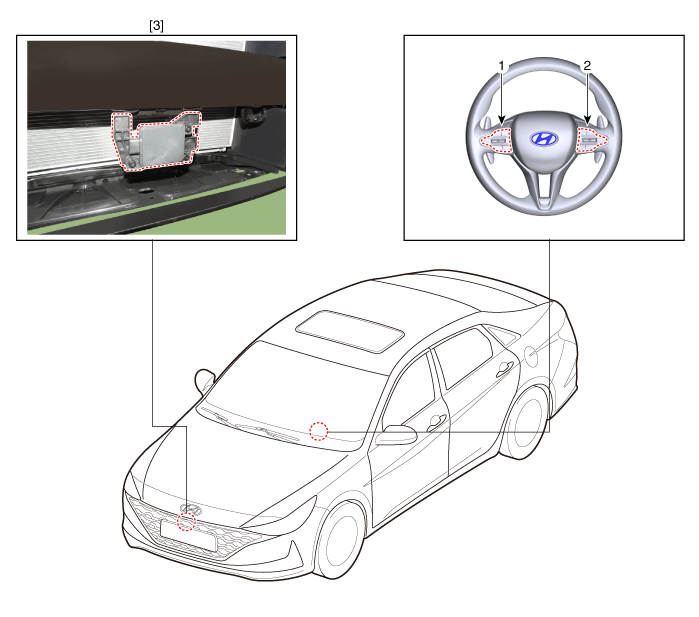

| Components Location |

| 1. Remote control switch (LH : Audio swtich) 2. Remote control switch (RH : Cruse) | 3. Front rader unit |
Description and operation The System may be limited when • The radar sensor or camera is blocked with a foreign object or debris.
Components and components location Components Location1. Front rader unit Specifications Specification Item Specification Power supply (V)12Operation voltage (V)9 - 16 Schematic diagrams Circuit DiagramTerminal function Pin No Terminal function 1GROUND2L-CAN HIGH3L-CAN LOW4C-CAN HIGH5C-CAN LOW6IGN Repair procedures InspectionInspection procedure for vehicle with Forward Collision-Avoidance Assist and Smart Cruise Control system failure 1.
Repair procedures RemovalMood lamp unit1.Disconnect the negative (-) battery terminal.2.Remove the main crash pad assembly.(Refer to Body - "Main Crash Pad Assembly")3.Loosen the mounting screws and remove the main crash pad air duct (A).4.Loosen the mounting screws and remove the mood lamp unit (A).
Description and operation DescriptionThe auto defogging sensor is installed on front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging. The air conditioner control module receives a signal from the sensor and restrains moisture and eliminates defog by the intake actuator, A/C, auto defogging actua
