Hyundai Elantra: Rear View Monitor (RVM) / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Components and components location

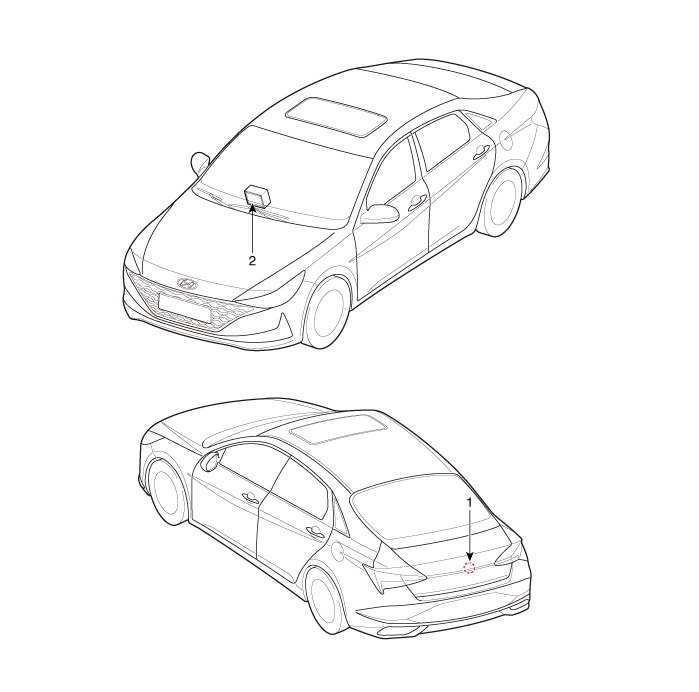

Component Location

1. Rear view camera

2. AVN monitor

Description and operation

DescriptionRear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.This system is a supplemental system that shows behind the vehicle through the AV monitor or the ECM (Reverse Display Room Mirror) mirror while backing-up...

Schematic diagrams

Circuit Diagram..
