| Removal and Installation |
| 1. | Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
| 2. | Remove the drive belt. (Refer to Drive Belt System - "Drive Belt") |

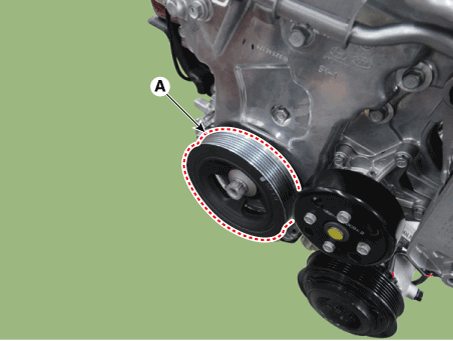

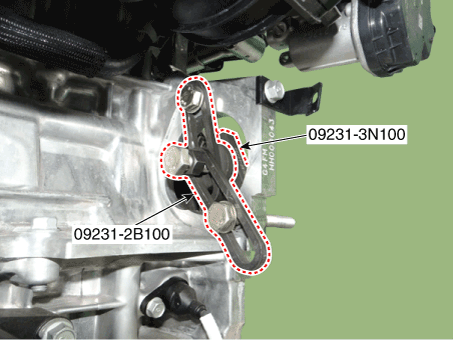

| 3. | Remove the crankshaft damper pulley (A).
|
| 4. | Install in the reverse order of removal. |
| Inspection |
Repair procedures Removal and Installation1.Remove the drive belt.(Refer to Drive Belt System - "Drive Belt")2.Remove the drive belt tensioner (A). Tightening torque Bolt (B) : 18.
DescriptionSystem OverviewThe System offers the following features:– Human / machine interface through a 1-stage button, for terminal switching and engine start.– Control of external relays for ACC / IGN1 / IGN2 terminal switching and STARTER, without use of mechanical ignition switch.
Schematic diagrams Circuit Diagram Repair procedures Removal1.Remove the bumper cover.(Refer to Body - "Front Bumper Cover")(Refer to Body - "Rear Bumper Cover")2.Disconnect the ultrasonic sensor connector (A) and remove the ultrasonic sensor (B).
