Hyundai Elantra: Drive Belt System / Drive Belt Tensioner

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Repair procedures
Removal and Installation
1.
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
2.

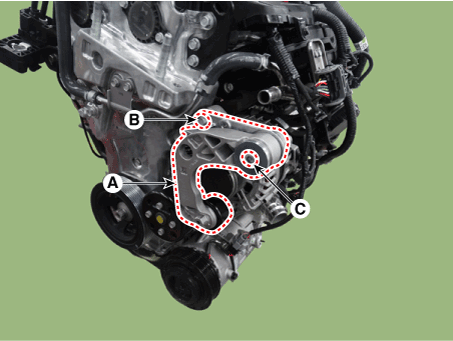

Remove the drive belt tensioner (A).
Tightening torque
Bolt (B) : 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Bolt (C) : 34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb-ft)

3.
Install in the reverse order of removal.

•
Check the belt tensioner for crack, and damage. Replace if necessary.
Inspection
Check the drive belt tensioner for excessive foreign substances, crack, damage or sticking of pivot shaft. Replace if necessary.

    Drive Belt

    Repair procedures Removal and Installation* There are two methods to when removing the drive belt. [When removing the drive belt from the top of the vehicle] 1...

    Crankshaft Damper Pulley

    Repair procedures Removal and Installation1.Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")2...
