Hyundai Elantra: Engine And Transaxle Assembly / Engine Cover

Hyundai Elantra (CN7) 2021-2024 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Cover

Repair procedures

Removal and Installation

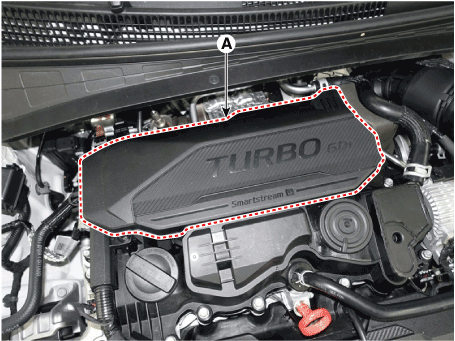

1.	Remove the engine cover (A).

2.	Installation is reverse order of removal
