| Description |

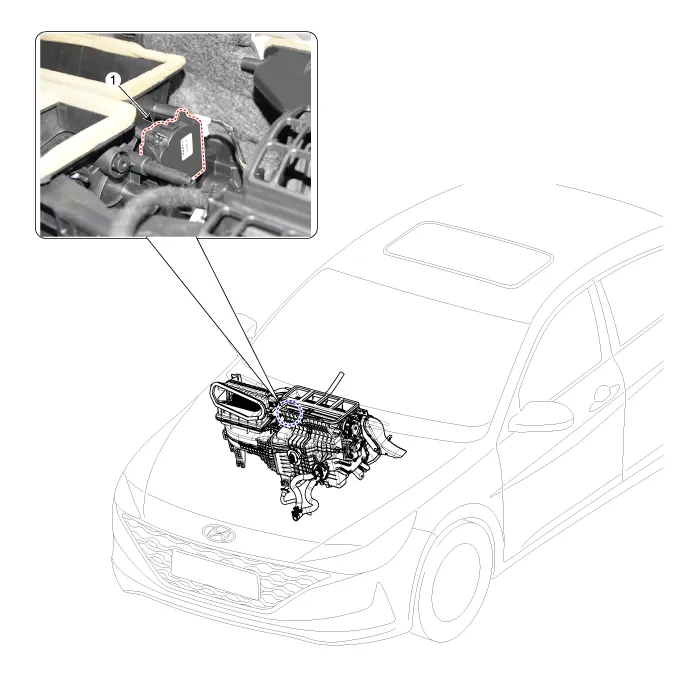

| Components Location |

| 1. Auto defoging actuator |
| Specifications |
|
Door position
|
Voltage (V)
|
Error detecting
|
| Max. cooling | 0.3 ± 0.15 | Low voltage : 0.1V or less |
| Max. heating | 4.7 ± 0.15 | High voltage : 4.9V or more |
| Inspection |
| 1. | Turn the ignition switch OFF. |
| 2. | Disconnect the auto defogging connector. |

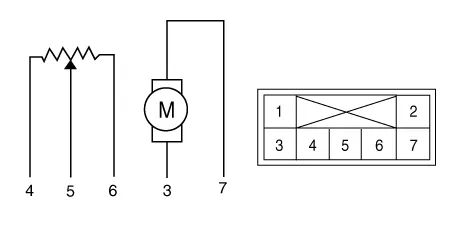

| 3. | Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 7. Verify that the auto defogging actuator operates to the close position when connected in reverse.
|
| 4. | Connect the auto defogging actuator connector. |
| 5. | Turn the ignition switch ON. |
| 6. | Check the voltage between terminals 6 and 5. |
| 7. | If the measured voltage is not within specification, check the operation by replacing the existing auto defogging actuator with a new genuine part. After that, determine whether replacement of the auto defogging actuator is required or not. |
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the main crash pad assembly. (Refer to Body (Interior and Exterior) - "Main Crash Pad Assembly") |

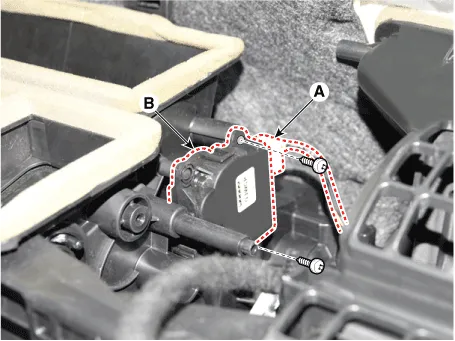

| 3. | Disconnect the connector (A) and then remove the auto defoging actuator (B) after loosening the mounting screws.
|
| 4. | To install, reverse the removal procedure. |
