Hyundai Elantra: Air Conditioning System / Evaporator Temperature Sensor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Evaporator Temperature Sensor

Description and operation

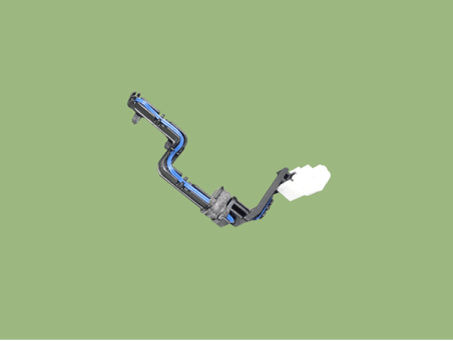

Description
The evaporator temperature sensor will detect the evaporator core temperature and interrupt compressor relay power in order to prevent evaporator from freezing by excessive cooling. The evaporator temperature sensor has the Negative Temperature Coefficient (NTC). Electrical resistivity of NTC will increase with decreasing temperature and decrease with increasing temperature.

Repair procedures
Inspection
1.
Turn the ignition switch ON.
2.
Turn the A/C switch ON.
3.

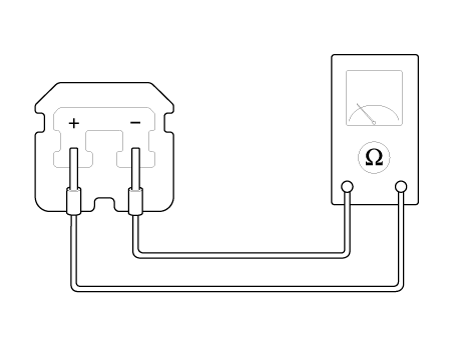

Measure the resistance between terminal "+" and "-" of the evaporator temperature sensor.
Evaporator core temperature
Resistance [KΩ]
Voltage [V]
[°C (°F)]
-10 (14)
43.35
2.96
0 (32)
27.62
2.4
10 (50)
18.07
1.88
20 (68)
12.11
1.44
30 (86)
8.3
1.08
40 (104)
5.81
0.81

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the evaporator core.
(Refer to Heater - "Evaporator Core")
3.

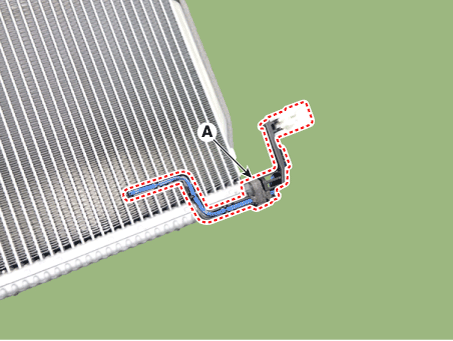

Remove the evaporator temperature sensor (A) front evaporator core.

4.
To install, reverse the removal procedure.
