Hyundai Elantra: Front Seat / Front Seat Shield Inner Cover

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Inner Cover

Components and components location
Component Location
[General type]

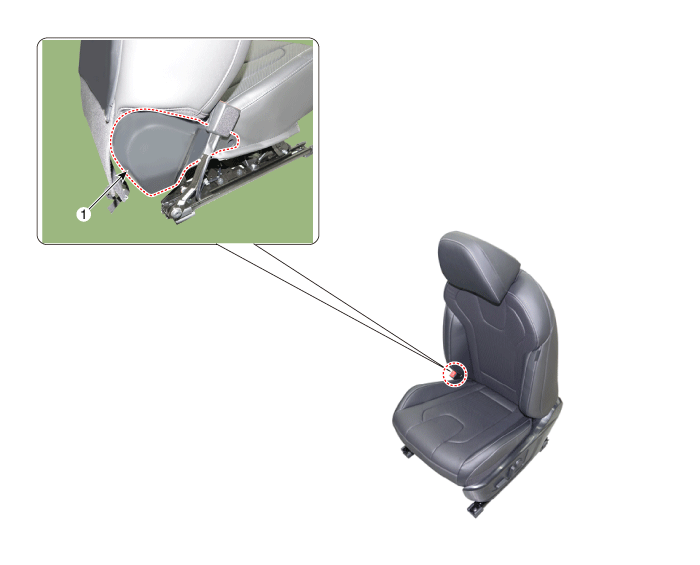

1. Front seat shield inner cover


[N Line]

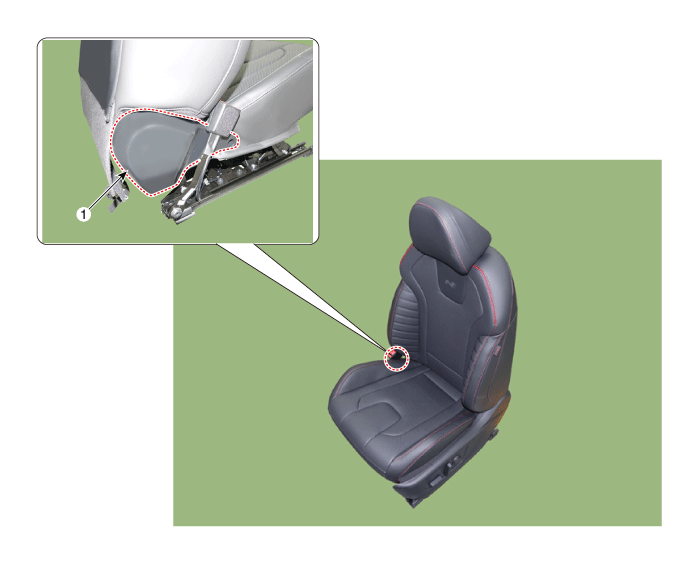

1. Front seat shield inner cover


Repair procedures
Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

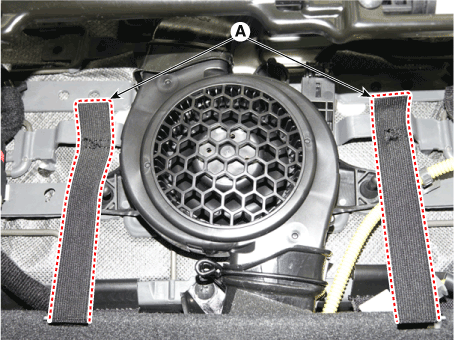

Remove the front seat lower protector (A).

3.

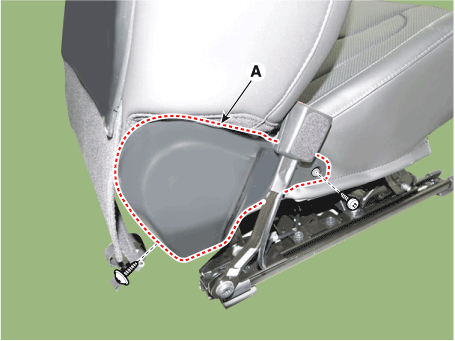

Loosen the mounting screw and then remove the front seat outer shield inner cover (A).

4.
Install in the reverse order of removal.

•
Replace any damaged clips (or pin - type retainers).

    Front Seat Shiled Outer Cover
