Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Back Cover

Components and components location
Component Location
[General type]

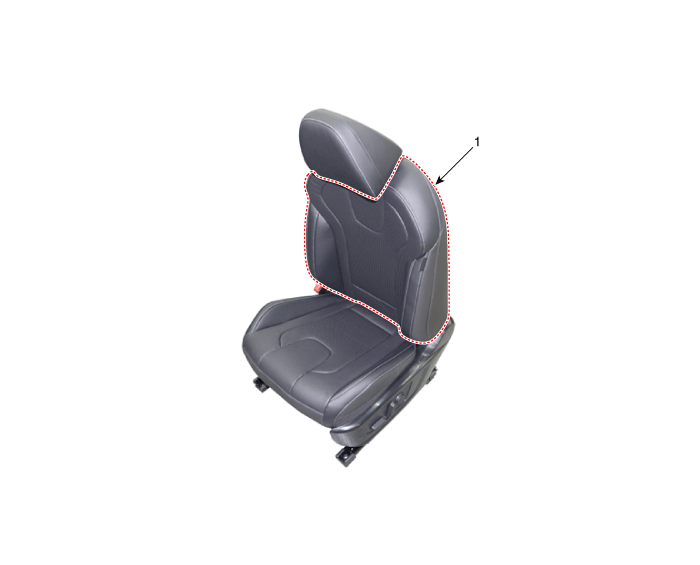

1. Front seat back cover


[N Line]

1. Front seat back cover


Repair procedures
Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

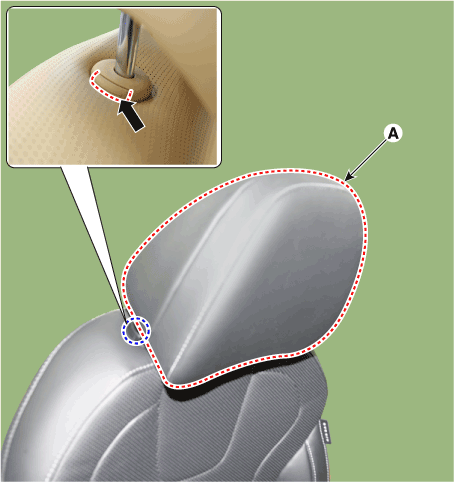

Remove the front seat headrest (A) by pulling it upward.

3.
Remove the front seat lower protector (A).

4.

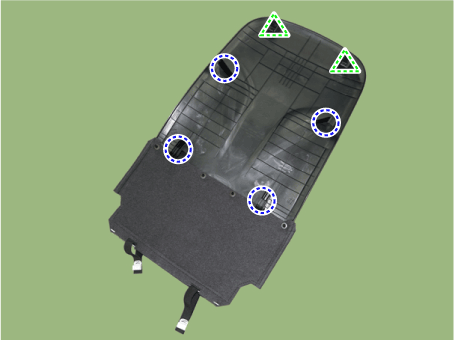

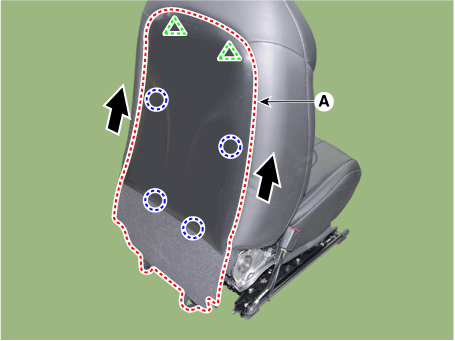

Remove the front seat back board (A).

•
Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
•
Be careful not to damage the fixing clips.

5.

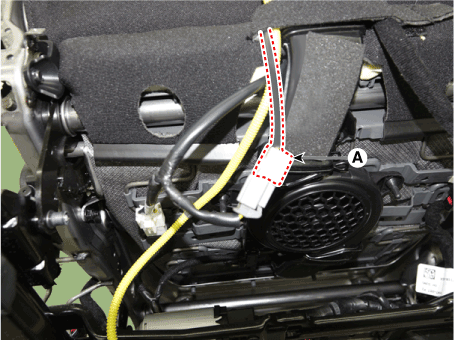

Disconnect the front seat ventilation duct (A).

6.

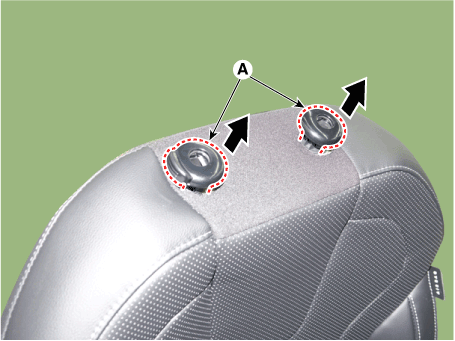

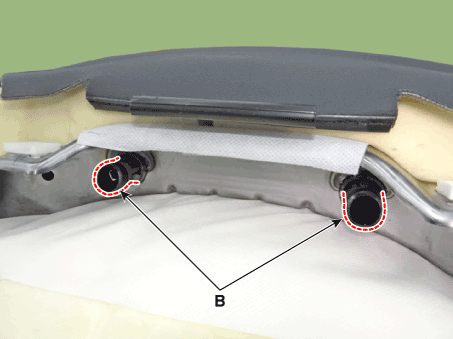

Press the both hook (B) and remove the headrest guides (A) by pulling upward.

7.
Press the lock pin, separate the lock pin (A).

8.

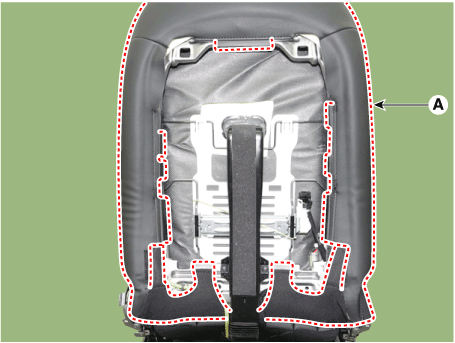

Separate the front seat back cover protector, remove the front seat back cover (A).

9.

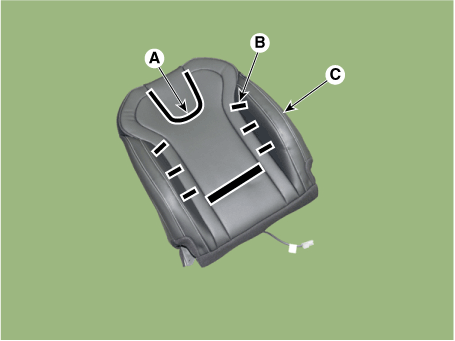

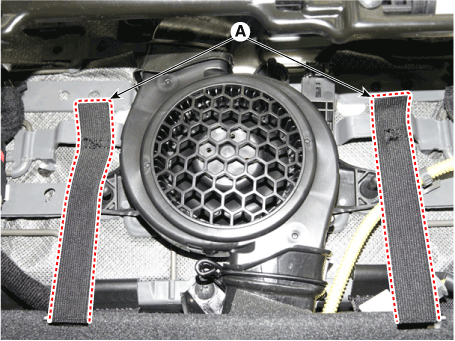

Remove the velcro tape (A) and tie down clips (B) inside the front seat back cover and remove the seat back cover (C).

•
Make sure that the sponge insert wire is not dislocated.

10.
Install in the reverse order of removal.

•
Make sure that the connectors are connected completely
•
Replace any damaged clips.
