Hyundai Elantra: Front Seat / Front Seat Cushion Cover

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Cushion Cover

Components and components location

Component Location

[General type]

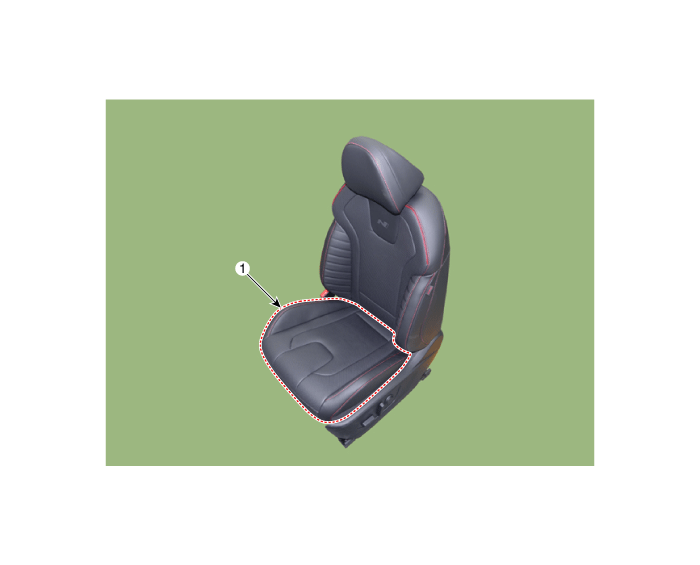

1. Front seat cushion cover

[N Line]

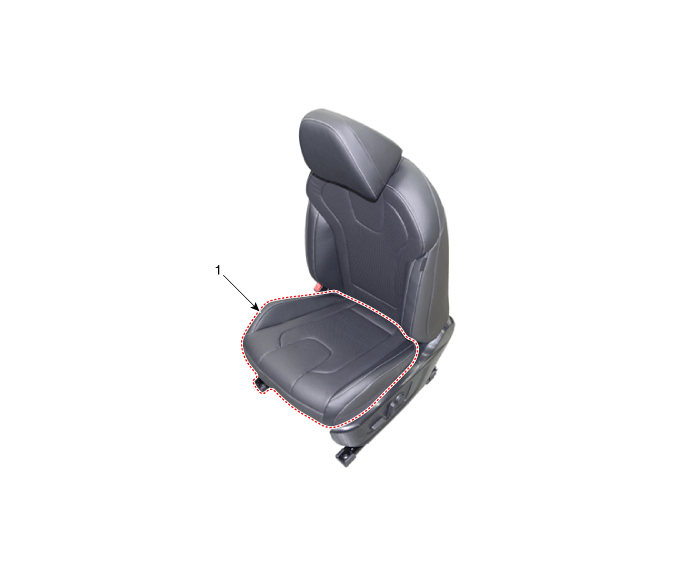

1. Front seat cushion cover

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

2.	Remove the front seat shield outer cover. (Refer to Front Seat - "Front Seat Shield Outer Cover")

3.	Remove the front seat shield inner cover. (Refer to Front Seat - "Front Seat Shield Inner Cover")

4.	Remove the front seat lower protector (A).

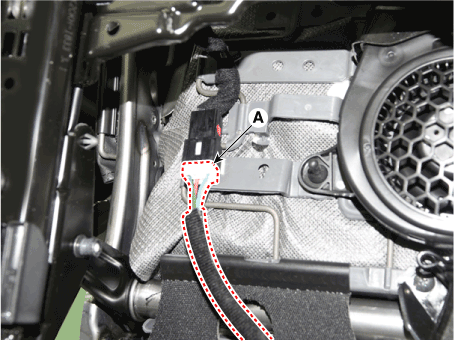

5.	Press the lock pin, disconnect the front seat cushion connector (A).

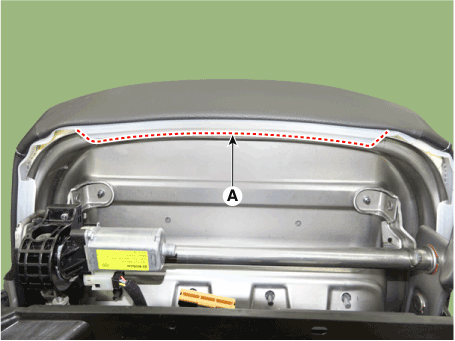

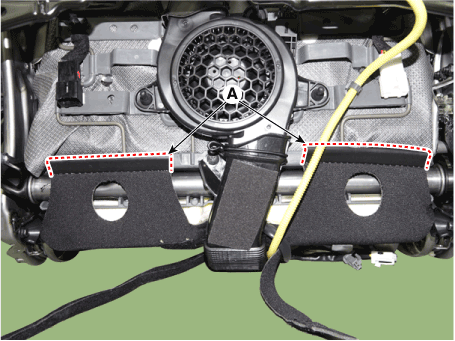

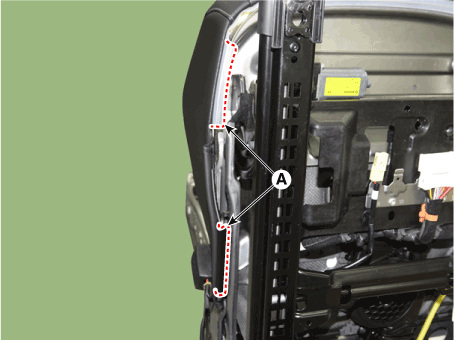

6.	Remove the front seat cushion cover protector (A) from the front seat cushion frame. [Upper] [Lower] [LH] [RH]

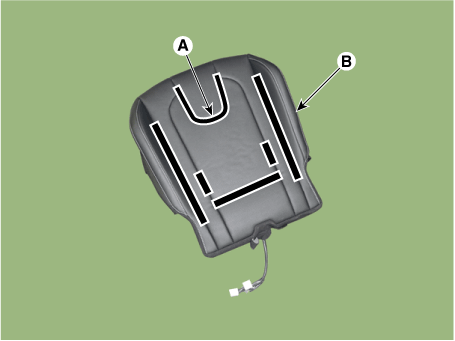

After removing the velcro tape (A) and remove the seat cushion cover (B).

•	Make sure that the sponge insert wire is not dislocated.

Install in the reverse order of removal.

•	Make sure that the connectors are connected completely

•	Replace any damaged clips.
