Hyundai Elantra: Front Seat / Front Seat Shiled Outer Cover

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shiled Outer Cover

Components and components location

Component Location

[General type]

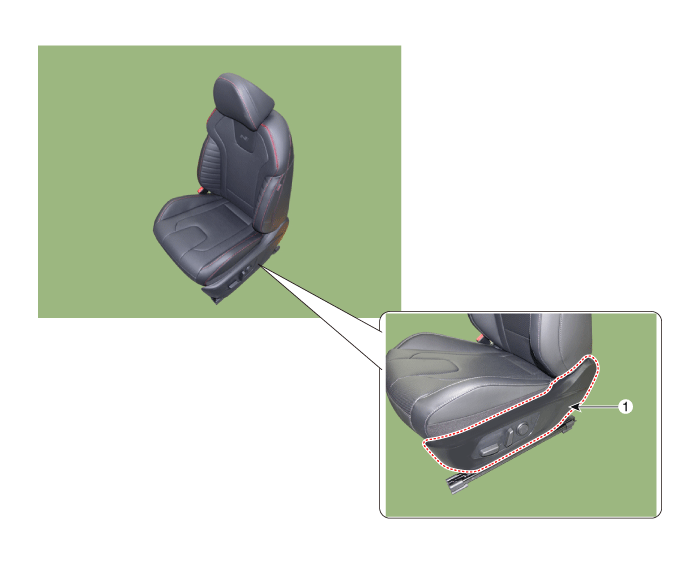

1. Front seat shield outer cover

[N Line]

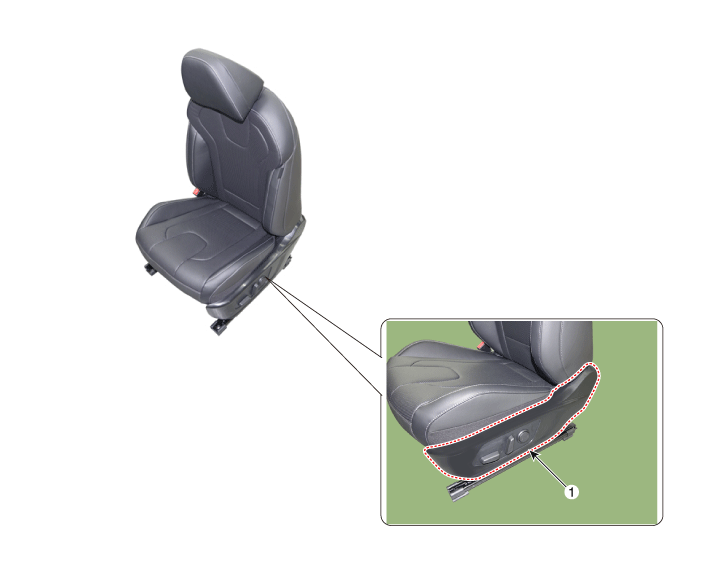

1. Front seat shield outer cover

Repair procedures

Replacement

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

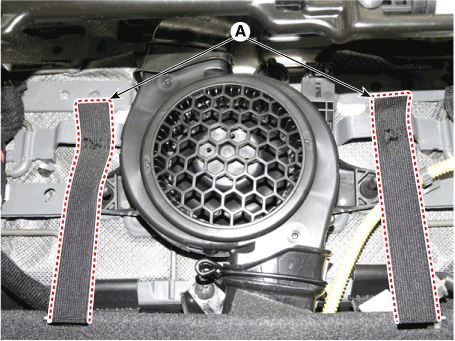

2.	Remove the front seat lower protector (A).

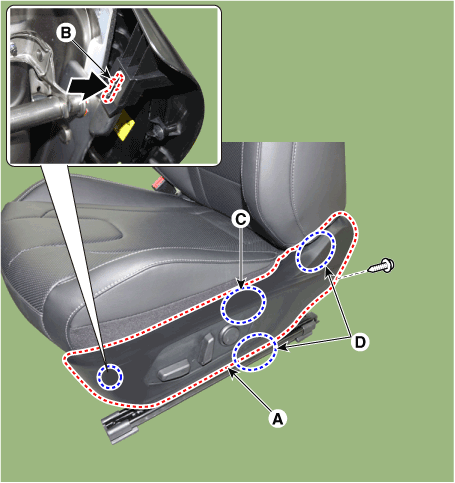

Loosen the mounitng screw, separate the clip (C) and hook (D) and then press the lock pin (B), remove the front seat outer shield outer cover (A).

•	Take care not to bend or scratch the hook and bracket.

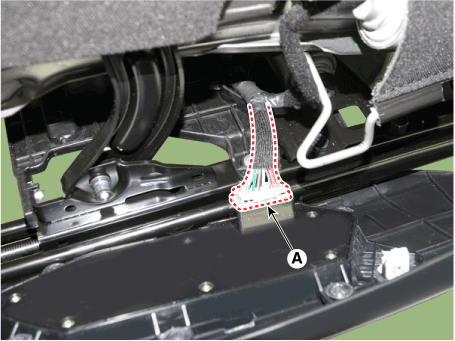

4.	Disconnect the front seat power switch connector (A).

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips (or pin - type retainers).
