Hyundai Elantra: Rear Cross-Traffic Collision Warning (RCCW) / Function operation
Function warning
Rear Cross-Traffic Safety system will
warn the driver when a collision is
imminent.
.png)
.png)
Collision Warning

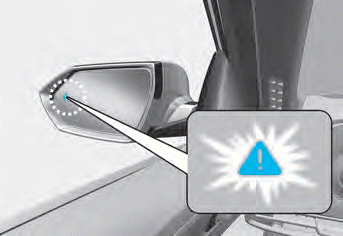

- To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the outside rearview

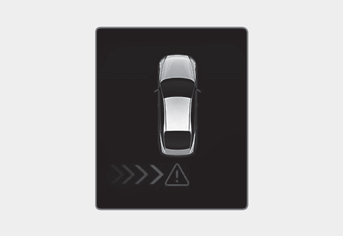

mirror will blink and a warning will
appear on the cluster. At the same
time, an audible warning will sound.
If the Rear View Monitor is operating,
a warning will also appear on the
infotainment system screen.
- The function will operate when all the
following conditions are satisfied:
-- The gear is shifted to R (Reverse)
-- Vehicle speed is below 5 mph (8
km/h)
-- The approaching vehicle is within
approximately 82 ft. (25 m) from the
left and right side of your vehicle
-- The speed of the vehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:
- For your safety, change the Settings
after parking the vehicle at a safe
location.
- If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.
- You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.
- Rear Cross-Traffic Safety system may
warn the driver late or may not warn
the driver depending on the road and
driving conditions.
- The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear
Cross-Traffic Safety system. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.
Setting
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assistance → Parking Safety → Rear Cross-
Traffic Safety’ from the Settings menu to
turn on Rear Cross-Traffic Safety system
and deselect to turn off the system...
Function malfunction
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check
Rear Cross-Traffic Safety system(s)’
warning message will appear on the
cluster, and the system will turn off
automatically, or the system will be
limited...
