Hyundai Elantra: Parking Safety / Rear Cross-Traffic Collision Warning (RCCW)
Rear Cross-Traffic Collision Warning Assist is designed to help detect vehicles approaching from the left and right side while your vehicle is reversing, and warn the driver that a collision is imminent with a warning message and an audible warning.

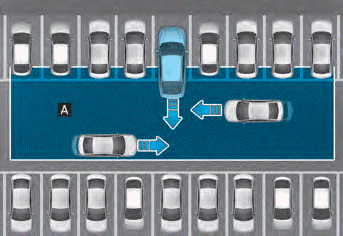

.png)
[A] : Rear Cross-Traffic Collision Warning operating range
CAUTION
The time of warning may vary depending on vehicle speed of the approaching vehicle.
Information
In the following text, Rear Cross-Traffic Collision Warning will be referred as Rear Cross-Traffic Safety system.
Detecting sensor

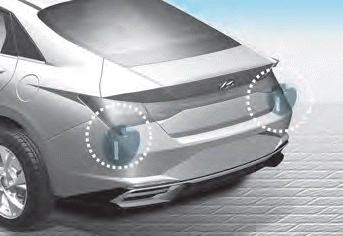

.png)
[1] : Rear corner radar
CAUTION
For more details on the precautions of the rear corner radar, refer to “Blind- Spot Collision-Avoidance Warning (BCW)” section in chapter 7.
Function malfunction and
limitations
Function malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer...
Function settings
Setting
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assistance → Parking Safety → Rear Cross-
Traffic Safety’ from the Settings menu to
turn on Rear Cross-Traffic Safety system
and deselect to turn off the system...
