Hyundai Elantra: Smart Trunk release / How to deactivate the Smart Trunk release function using the smart key

Hyundai Elantra (CN7) 2021-2024 Owner's Manual / Convenient Features / Trunk / Smart Trunk release / How to deactivate the Smart Trunk release function using the smart key

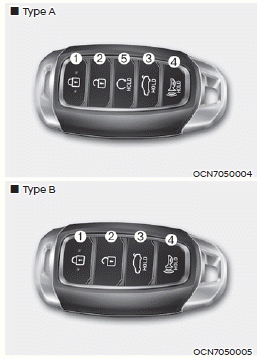

1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote Start

If you press any button of the smart key during the Detect and Alert stage, the Smart Trunk release function will be deactivated.

Make sure to be aware of how to deactivate the Smart Trunk release function for emergency situations.

Information

  • If you press the door unlock button (2), the Smart Trunk release function will be deactivated temporarily. But, if you do not open any door for 30 seconds, the smart trunk function will be activated again.
  • If you press the trunk open button (3) for more than 1 second, the trunk opens.
  • If you press the door lock button (1) or trunk open button (3) when the Smart Trunk release function is not in the Detect and Alert stage, the smart trunk function will not be deactivated.
  • In case you have deactivated the Smart Trunk function by pressing the smart key button and opened a door, the Smart Trunk release function can be activated again by closing and locking all doors.

    Smart Trunk release

    On a vehicle equipped with a smart key, the trunk can be opened using the Smart Trunk release system. How to use the Smart Trunk release The trunk can be opened with notouch activation satisfying all the conditions below...

    Detecting area

    The Smart Trunk release operates with a welcome alert if the smart key is detected within 20 ~ 40 inches from the trunk. The alert stops at once if the smart key is positioned outside the detecting area during the Detect and Alert stage...
