Hyundai Elantra: IMS(Integrated Memory System) / Memory power seat switch

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Memory power seat switch

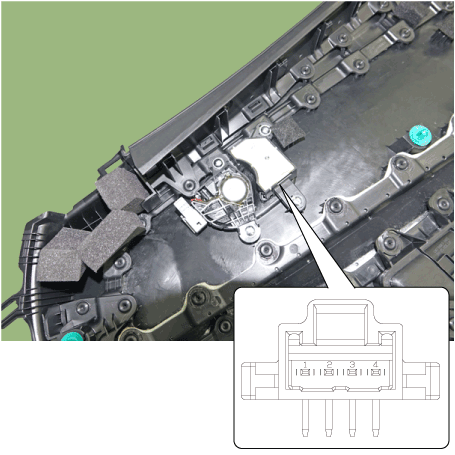

Components and components location

Components

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver door trim. (Refer to Body - "Front Door Trim")

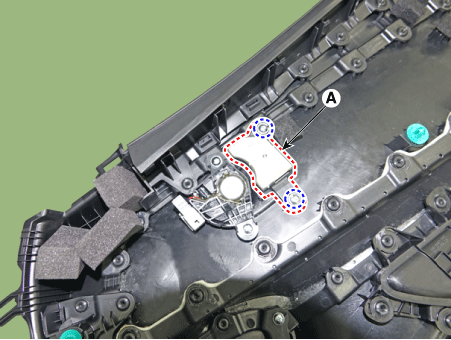

3.	Remove the memory power switch (A) after disengaging the mounting clips.

Installation

1.	Install the memory power seat control switch (IMS).

2.	Install the door trim.

3.	Connect the negative (-) battery terminal.

Inspection

1.	Remove the memory power seat connector

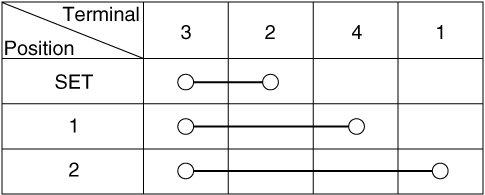

2.	When each switch is pressed, check the electricity flow between memory power seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.
