Hyundai Elantra: Manual heating and air conditioning / Mode selection
.png)
.png)

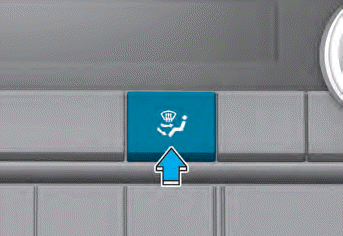

The mode selection toggle switch controls the direction of the air flow through the ventilation system.
The air flow outlet direction is cycled as follows:
.png)

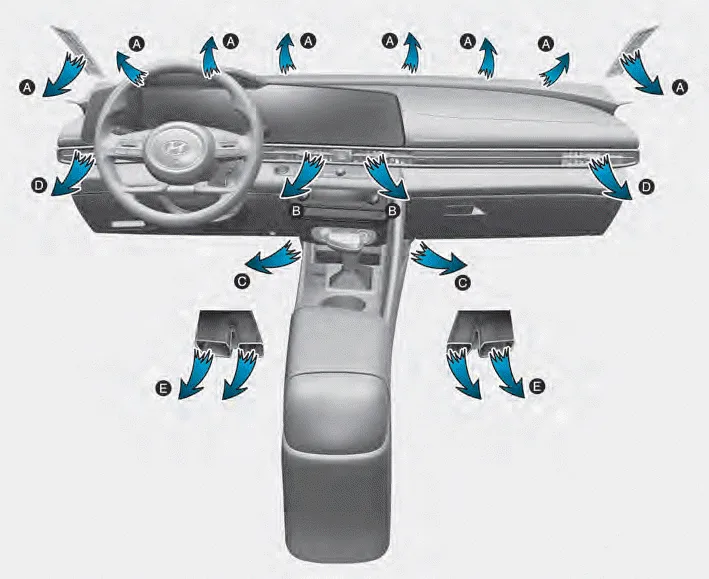

Face-level (B, D)
.png)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D, E)
.png)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D, E)
.png)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.
Floor & Defrost (A, C, D, E)
.png)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

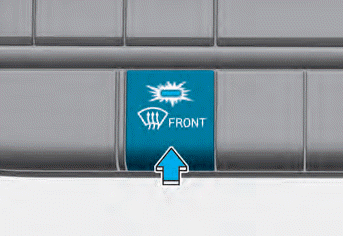

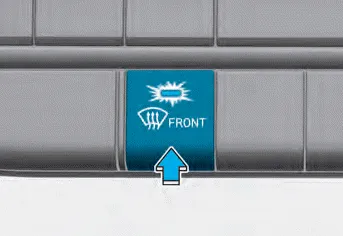

Defrost-Level (A, D)
.png)
Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.
Instrument panel vents
.png)

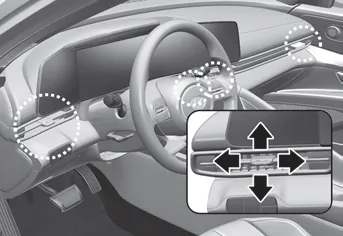

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.
To close the vent, push the air vent lever in the opposite direction of the passenger. To open the vent, push the air vent lever in the same direction of the passenger.
Manual heating and air
conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected...
Temperature control
The temperature will increase by turning
the knob to the right.
The temperature will decrease by turning
the knob to the left.
The temperature will increase or
decrease by 1°F (0...
