Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Power Mosfet

Description and operation

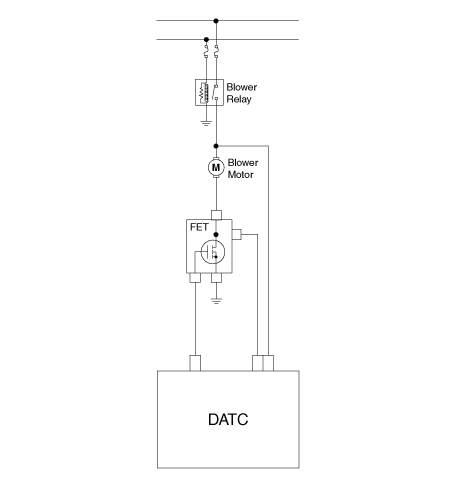

Description
It is installed to the DATC and adjusts the fan rpm by precisely controlling the voltage applied to the blower motor.
Repair procedures
Inspection
1.
Manually operate the control switch and measure the voltage of the blower motor.
2.
Select the control switch to raise the voltage until high speed.

Fan Speed
Motor Voltage (V) (Manual)
1
3.8
2
5
3
6.1
4
7.3
5
8.5
6
9.7
7
10.9
8
Battery +

Replacement
1.
Disconnect the negative (-) battery terminal.
2.

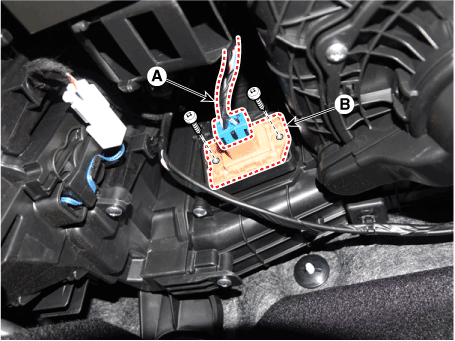

Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.

3.
To install, reverse the removal procedure.
