Hyundai Elantra: Blower / Blower Resistor (Manual)

Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Resistor (Manual)

Repair procedures

Inspection

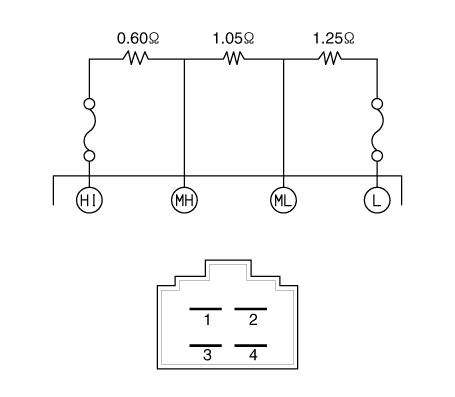

1.	Measure the resistance between the terminals.

2.	The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

Replacement

1.	Disconnect the negative (-) battery terminal.

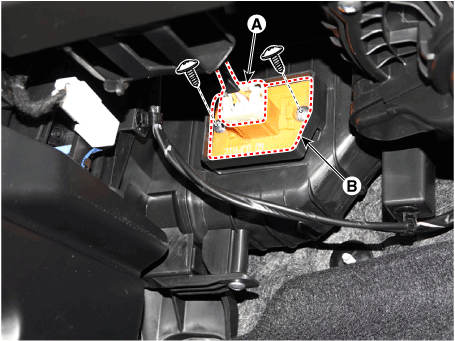

2.	Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.

3.	To install, reverse the removal procedure.
