Hyundai Elantra: Rear Seat Belt / Rear Seat Belt Retractor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor

Components and components location

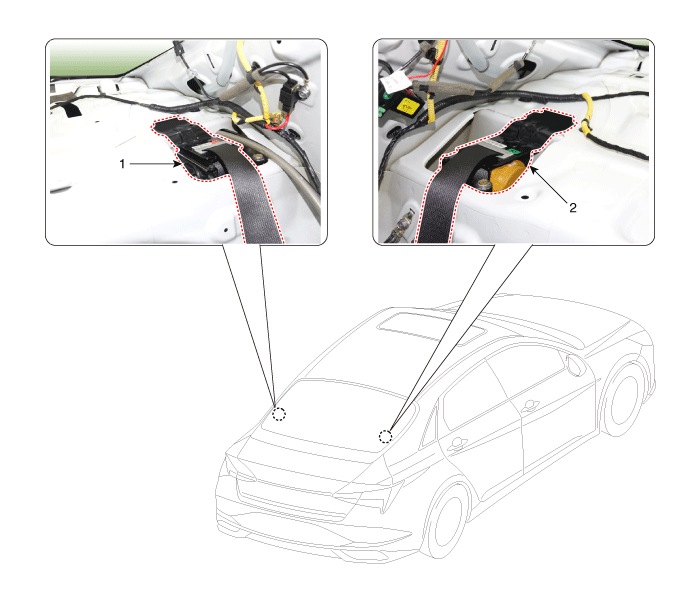

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Repair procedures
Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the package tray trim.
(Refer to Interior Trim - "Package Tray Trim")
2.

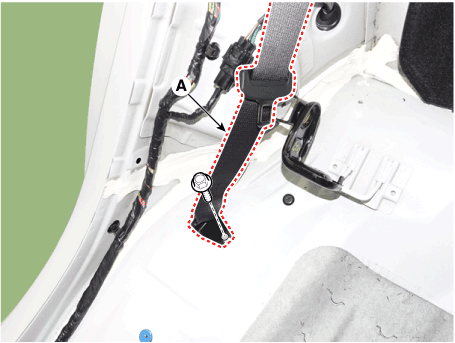

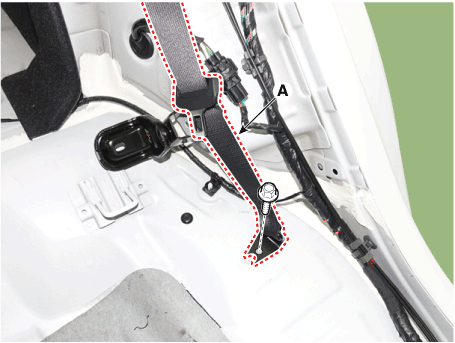

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]

[RH]

3.

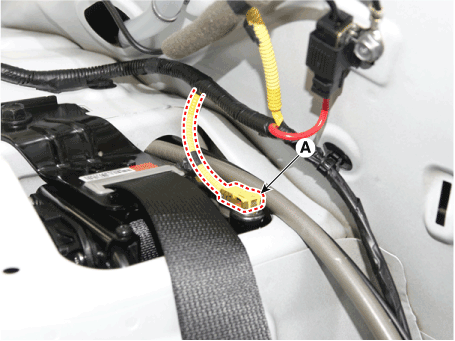

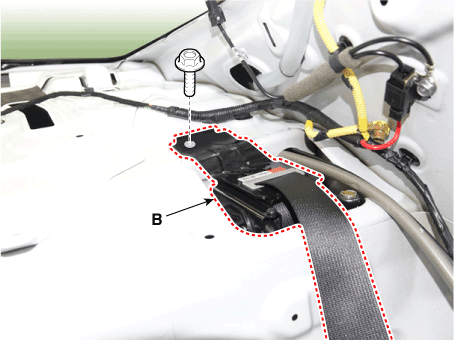

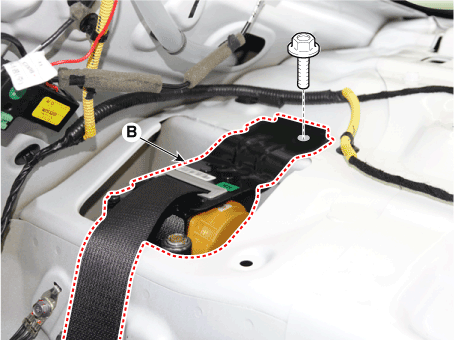

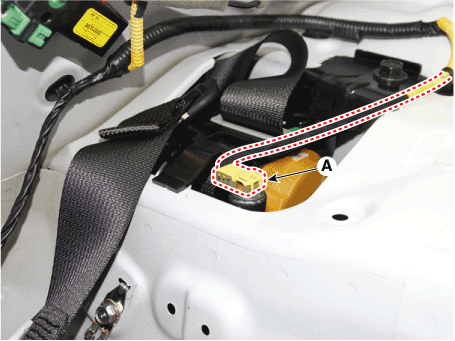

Separate the rear seat belt connector (A) and loosen the mounitng bolt, remove the rear seat belt retratcor (B).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]

[RH]

4.
Install in the reverse order of removal.

•
Replace any damaged clips (or pin - type retainers).
