Hyundai Elantra: Maintenance / Scheduled Maintenance Services

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions.

  • Repeated short distance driving.
  • Driving in dusty conditions or sandy areas.
  • Extensive use of brakes.
  • Driving in areas where salt or other corrosive materials are used.
  • Driving on rough or muddy roads.
  • Driving in mountainous areas.
  • Extended periods of idling or low speed operation.
  • Driving for a prolonged period in cold temperatures and/or extremely humid climates.
  • More than 50% driving in heavy city traffic during hot weather above 90°F (32°C).
  • Engine oil usage which is not recommended (mineral type, lower grade spec, etc.) For additional information or assistance see your authorized HYUNDAI dealer.


After 10 years or 100,000 miles, we recommend to use severe maintenance schedule.

Owner Maintenance

WARNING Performing maintenance work on a vehicle can be dangerous. If you lack sufficient knowledge and experience or the proper tools and equipment to do the work, have it done by an authorized HYUNDAI dealer...

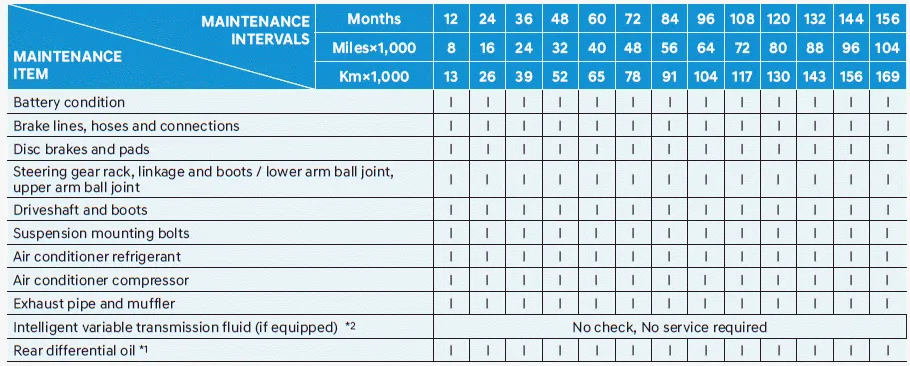

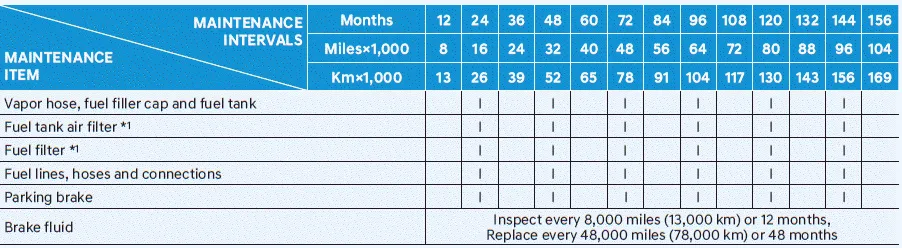

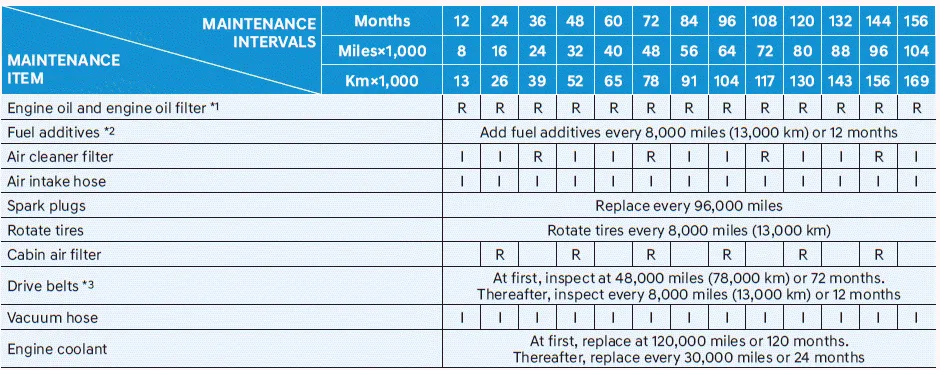

Normal Maintenance Schedule (Smartstream G2.0 Atkinson)

R: Replace or change. I : Inspect and if necessary, adjust, correct, clean or replace. ..

Other information:

Hyundai Elantra (CN7) 2021-2024 Service Manual: Front Washer Motor

Repair procedures InspectionFront Washer Motor1.With the washer motor connected to the reservoir tank, fill the reservoir tank with water.    • Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.2.Connect positive (+) battery cables to terminal 2 and negative (-) battery cab..

Hyundai Elantra (CN7) 2021-2024 Service Manual: Heater Unit

Components and components location Component Location1. Heater unit assemblyCompoents1. Heater unit assembly2. Heater tube cover3. Heater core assembly4. Mode control actuator [LH]5. Dummy PTC6. Temperature control actuator [LH]7. Heater case [LH]8. Separator (Out)9. Heater case [CTR]10. Heater & Blower duct seal11. DEF door assembly12. Vent door assembly13. Floor door assembly14. Mode door..


Tire Rotation

To equalize tread wear, HYUNDAI recommends that the tires be rotated according to the maintenance schedule or sooner if irregular wear develops.

During rotation, check the tires for correct balance.

When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, out-ofbalance wheels, severe braking or severe cornering. Look for bumps or bulges in the tread or side of the tire. Replace the tire if you find any of these conditions. Replace the tire if fabric or cord is visible. After rotation, be sure to bring the front and rear tire pressures to specification and check lug nut tightness (proper torque is 79~94 lbf·ft [11~13 kgf·m]).
