Hyundai Elantra: Side View Mirrors / Side View Mirror Adjustment

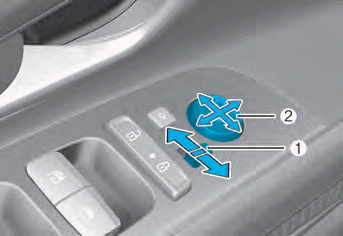

1. Press either the L (left side) or R (right
side) button (1) to select the side view
mirror you would like to adjust.
2. Use the mirror adjustment control (2)
to position the selected mirror up,
down, left or right.
3. After adjustment, put the button into
neutral (center) position to prevent
inadvertent adjustment.
NOTICE
- The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
- Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors...
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards...
