| Removal |
| 1. | Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
| 2. | Drain the coolant. (Refer to Cooling System - "Coolant") |

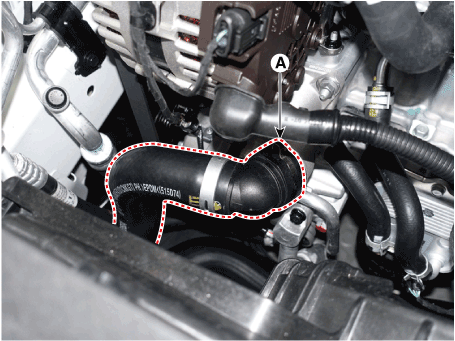

| 3. | Disconnect the radiator lower hose (A).
|

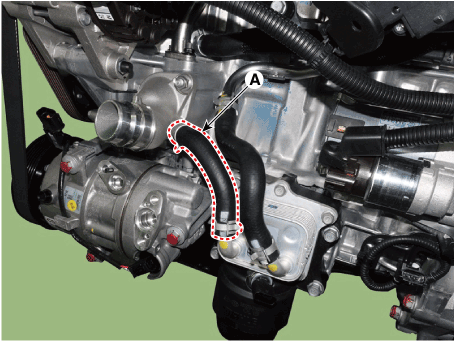

| 4. | Disconnect the oil cooler hose (A).
|

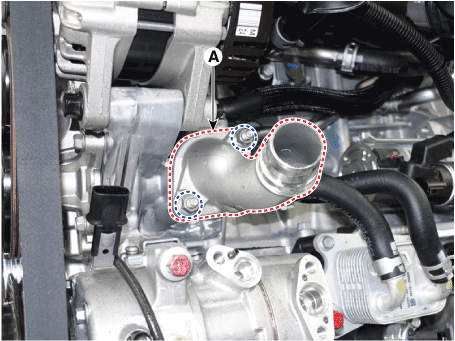

| 5. | Remove the water inlet fitting (A).
|
| 6. | Install in the reverse order of removal.
|
| 7. | Fill with engine coolant. (Refer to Cooling System - "Coolant")
|
| 8. | Start engine and check for leaks. |
