Hyundai Elantra: Air Bag - Advanced Supplemental Restraint System / Where Are the Air Bags?

Driver’s and passenger’s front air bags

Your vehicle is equipped with an Advanced Supplemental Restraint System (SRS) and lap/shoulder belts at both the driver and passenger seating positions.

The SRS consists of air bags which are located in the center of the steering wheel, in the driver’s side lower crash pad below the steering wheel column and the passenger’s side front panel pad above the glove box.

The air bags are labeled with the letters “AIR BAG” embossed on the pad covers.

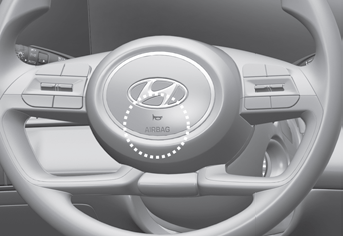

Driver’s front air bag

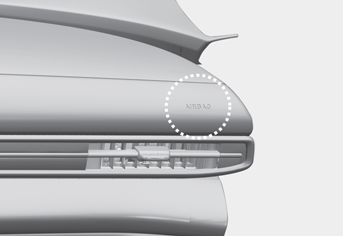

Passenger’s front air bag

The purpose of the SRS is to provide the vehicle’s driver and front passengers with additional protection than that offered by the seat belt system alone. The SRS uses sensors to gather information about the driver’s and front passenger’s seat belt usage and impact severity. The seat belt buckle sensors determine if the driver and front passenger’s seat belts are fastened. These sensors provide the ability to control the SRS deployment based on whether or not the seat belts are fastened, and how severe the impact is. The advanced SRS offers the ability to control the air bag inflation within two levels. A first stage level is provided for moderate-severity impacts. A second stage level is provided for more severe impacts. According to the impact severity, and seat belt usage, the SRS Control Module (SRSCM) controls the air bag inflation. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

WARNING

To reduce the risk of serious injury or death from inflating front air bags, take the following precautions:

  • Seat belts must be worn at all times to help keep occupants positioned properly.
  • Move your seat as far back as possible from front air bags, while still maintaining control of the vehicle.
  • Never lean against the door or center console.
  • Do not allow the front passenger to place their feet or legs on the dashboard.
  • No objects (such as crash pad cover, cellular phone holder, cup holder, perfume or stickers) should be placed over or near the air bag modules on the steering wheel, instrument panel, windshield glass, and the front passenger’s panel above the glove box. Such objects could cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy.

Air Bag - Advanced Supplemental Restraint System

1. Driver’s front air bag 2. Passenger’s front air bag 3. Side air bag 4. Curtain air bag This vehicle is equipped with an Advanced Supplemental Air Bag System for the driver’s seat and front passenger’s seats...

Side air bags

Front seat Your vehicle is equipped with a side air bag in each front seat. The purpose of the air bag is to provide the vehicle’s driver and the front passenger with additional protection than that offered by the seat belt alone...
