Hyundai Elantra (CN7): Infotainment System / Bluetooth® Wireless Technology hands-free
You can use the phone wirelessly by using the Bluetooth® Wireless Technology.

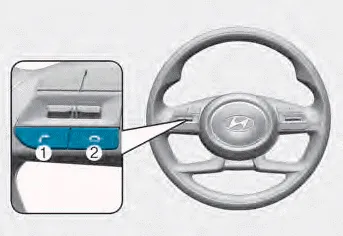

(1) Call / Answer button
(2) Call end button

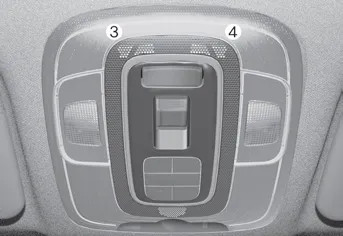

(3) LHD Microphone
(4) RHD Microphone
- Audio : For detailed information, refer to “AUDIO” in this chapter.
- Navigation : Detailed information for the Bluetooth® Wireless Technology hands-free is described in the manual supplied separately
A wide range of infotainment functions can be commanded with voice recognition.
FM reception AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your vehicle.
